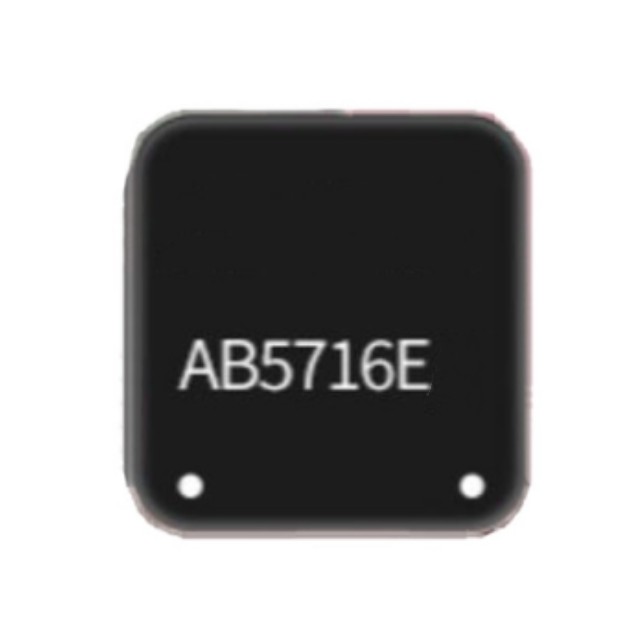

AB5716E is a high-performance Bluetooth audio SoC designed specifically for TWS earbuds. It features a high-performance 32-bit RISC-V processor core with DSP instruction support, operating at a maximum frequency of 140MHz, and complies with the Bluetooth 6.0 + BR + EDR + BLE specifications.

Product Features

High-performance audio processing capabilities

Features an integrated high-performance 32-bit RISC-V processor core with DSP instruction support, operating at a maximum frequency of 140MHz, enabling complex audio processing algorithms and delivering a high-quality audio experience.

High-performance mono DAC with a signal-to-noise ratio of 103dB, supporting differential mode and VCMBUF mode, ensuring high-fidelity audio and dynamic range.

High-performance stereo ADC with a signal-to-noise ratio of 100dB, supporting flexible audio equaliser adjustment to meet the audio requirements of different users.

Excellent wireless connectivity performance

Compliant with Bluetooth 6.0 specifications, supporting TWS communication and master-slave switching, ensuring stable wireless connectivity.

Maximum transmit output power of +9dBm and receive sensitivity of -94.5dBm @ 2M EDR, maintaining stable connectivity even in complex environments.

Rich audio interfaces and features

Supports 2-channel MIC amplifier input for clear voice calls.

Supports multiple audio sampling rates, including 8, 11.025, 12, 16, 22.05, 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz, to meet the requirements of different audio formats.

Also supports feedforward ANC (FF ANC) and dual MIC DNN environmental noise cancellation (ENC), effectively reducing environmental noise and enhancing audio clarity and user auditory experience.

Low-power design

An optimised power management system reduces power consumption while maintaining audio performance, extending the device's battery life.

Flexible GPIO pins

Flexible GPIO pins with programmable pull-up and pull-down resistors, configurable according to specific requirements.

Supports GPIO wake-up or interrupt, enhancing the chip's flexibility and applicability.

AB5716E Technical Specifications

Processor: 32-bit RISC-V processor with DSP instruction support, operating at up to 140MHz

Memory: Built-in 8Mbit flash memory and 280KB RAM

GPIO pins: Flexible GPIO pins with programmable pull-up and pull-down resistors, supporting GPIO wake-up or interrupts

Bluetooth performance: Maximum transmit output power +9dBm, receive sensitivity -94.5dBm @ 2M EDR, supporting TWS communication and master/slave switching

Audio Interface: High-performance mono DAC with a signal-to-noise ratio of 103dB, supporting differential mode and VCMBUF mode; high-performance stereo ADC with a signal-to-noise ratio of 100dB; supports two-channel MIC amplifier inputs and multiple audio sampling rates

Package Type: QFN20 (3×3mm)

Operating Temperature Range: -40°C to 85°C

Applications

The AB5716E is primarily used in TWS earbuds and can also be applied to other Bluetooth audio devices, providing users with high-quality audio experiences and stable connection performance.
