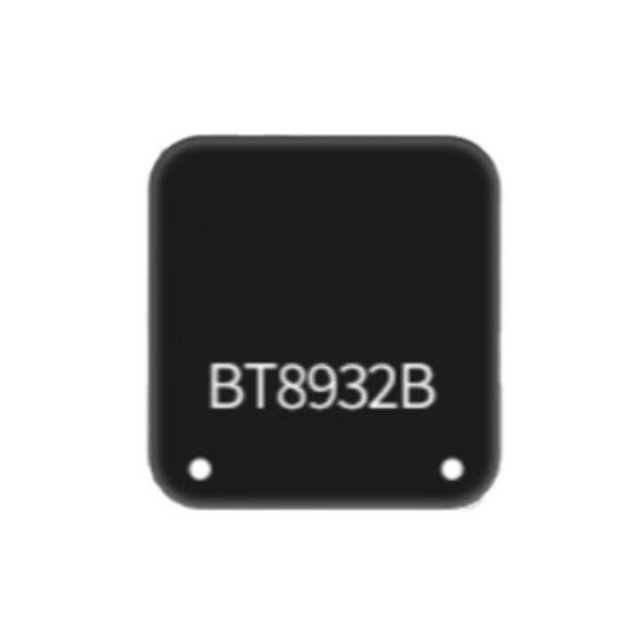

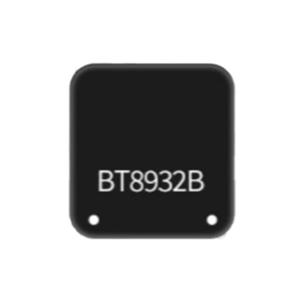

BT8932B is a high-performance Bluetooth audio SoC specifically designed for TWS earbuds and open-ear headphones. It features a high-performance 32-bit RISC-V processor core with DSP instruction support, operating at a maximum frequency of 140MHz, and complies with the Bluetooth 6.0 + BR + EDR + BLE specifications. It is ideal for audio devices with high demands on sound quality and battery life.

BT8932B Product Specifications

Processor: 32-bit RISC-V processor with DSP instruction support, operating at a maximum frequency of 140MHz.

Memory: Built-in 8Mbit flash memory and 320KB RAM.

GPIO Pins: Flexible GPIO pins with programmable pull-up and pull-down resistors, supporting GPIO wake-up or interrupt functionality.

Bluetooth Performance: Maximum transmit output power +10.5dBm, receive sensitivity -94.5dBm @ 2M EDR, supports TWS communication and master/slave switching.

Audio interface: High-performance stereo DAC with a signal-to-noise ratio of 104dB, supporting differential mode and VCMBUF mode; high-performance mono ADC with a signal-to-noise ratio of 102dB; supports 1 MIC amplifier input and multiple audio sampling rates.

Noise reduction: Supports AI DNN ENC noise reduction.

Other features: Supports neural network processing unit (NPU), low-power touch keys, in-ear detection, etc., with integrated PMU.

Package type: QFN32 (4×4mm)

Operating temperature range: -40°C to 85°C

BT8932B Product Performance

High-performance audio processing: A 32-bit RISC-V processor and DSP instructions enable complex audio processing algorithms, delivering a high-quality audio experience.

Low-power design: An optimised power management system extends the device's battery life.

Robust Bluetooth connectivity: Compliant with Bluetooth 6.0 specifications, supports TWS communication and master/slave switching, ensuring stable wireless connectivity.

Excellent Audio Quality: High signal-to-noise ratio DAC and ADC ensure high-fidelity audio and dynamic range.

Noise Cancellation: AI DNN ENC noise cancellation effectively reduces environmental noise, enhancing audio clarity and user listening experience.

Product Applications

The BT8932B is primarily used in TWS earbuds and open-ear headphones, such as the FIIL Atom open-ear headphones.
