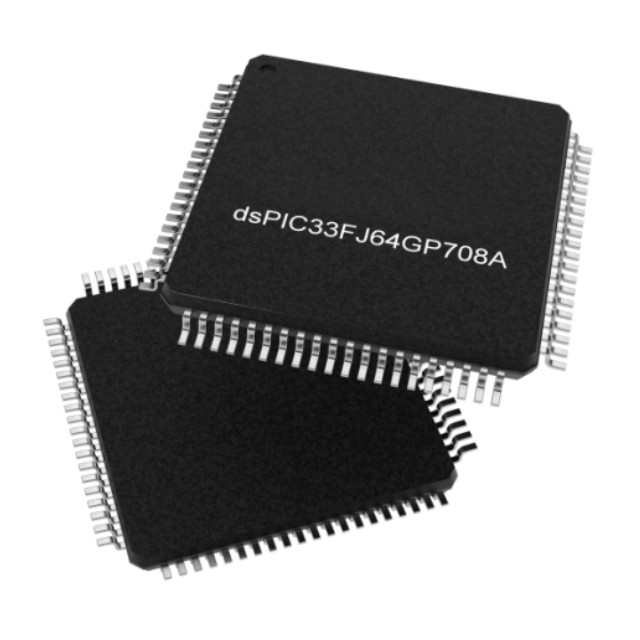

DSPIC33FJ64GP708A-E/PT is 16-bit Digital Signal Controllers with Advanced Analog. DSPIC33FJ64GP708A-E/PT designed to execute digital filter algorithms and high-speed precision digital control loops, ideal for applications that need to perform under pressure.

Features Of DSPIC33FJ64GP708A-E/PT

Operating Conditions

Up to 40 MIPS operation

3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

High-performance dsPIC33F core

Code-efficient (C and Assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-sign MUL plus hardware divide

Clock Management

Programmable PLLs and oscillator clock sources

±2% internal oscillator

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer (WDT)

Fast wake-up and start-up

Power Management

Low-power management modes (Sleep, Idle, Doze)

Integrated Power-on Reset and Brown-out Reset

2.1 mA/MHz dynamic current (typical)

50 μA IPD current (typical)

Advanced Analog Features

Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices

Flexible and independent ADC trigger sources

Timers/Output Compare/Input Capture

Up to nine 16-bit timers/counters (Can pair up to make four 32-bit timers)

Eight Output Compare modules configurable as timers/counters

Eight Input Capture modules Communication Interfaces

Two UART modules (10 Mbps) - With support for LIN 2.0 protocols and IrDA®

Two 4-wire SPI modules (15 Mbps)

Up to two I2C™ modules (up to 1 Mbaud) with SM Bus support

Up to two Enhanced CAN (ECAN) modules (1 Mbaud) with CAN 2.0B support

Data Converter Interface (DCI) module with I2S codec support

Input/Output

Sink/Source up to 10 mA (pin specific) for standard VOH/VOL, up to 16 mA (pin specific) for non-standard VOH1

5V-tolerant pins

Selectable open drain, pull-ups, and pull-downs

Up to 5 mA overvoltage clamp current

External interrupts on all I/O pins

Debugger Development Support

In-circuit and in-application programming

Two program and two complex data breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan

Trace and run-time watch
