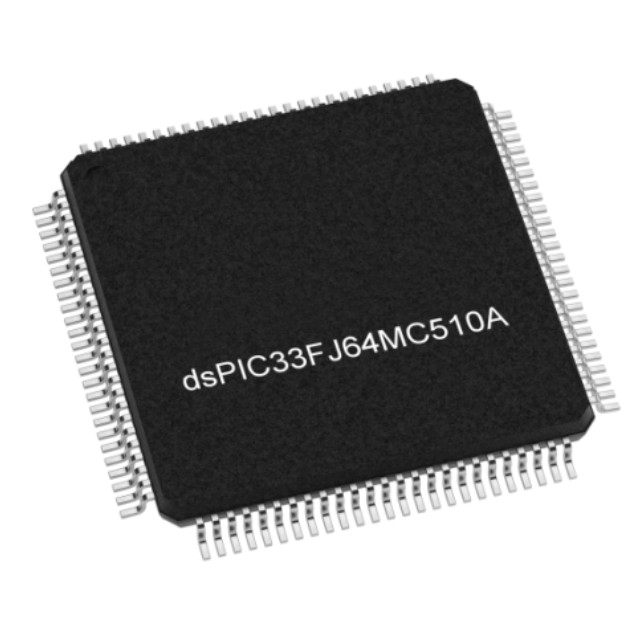

DSPIC33FJ64MC510A-I/PT devices supports a variety of motor control applications, such as brushless DC motors, single and 3-phase induction motors and switched reluctance motors. The DSPIC33FJ64MC510A-I/PT Motor Control products are also well-suited for Uninterrupted Power Supply (UPS), inverters, Switched mode power supplies, power factor correction and also for controlling the power management module in servers, telecommunication equipment and other industrial equipment. These devices are also available in extended operating temperature options.

Features Of DSPIC33FJ64MC510A-I/PT

Operating Conditions

3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

Qualification and Class B Support

AEC-Q100 REVG (Grade 1 -40ºC to +125ºC)

AEC-Q100 REVG (Grade 0 -40ºC to +150ºC)

Class B Safety Library, IEC 6073

Core: 16-bit dsPIC33F CPU

Code-efficient (C and Assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-sign MUL plus hardware divide

Clock Management

±2% internal oscillator

Programmable PLLs and oscillator clock sources

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer (WDT)

Fast wake-up and start-up

Power Management

Low-power management modes (Sleep, Idle,Doze)

Integrated Power-on Reset and Brown-out Reset

1.35 mA/MHz dynamic current (typical)

55 μA IPD current (typical)

Motor Control PWM

Up to four PWM generators with eight outputs

Dead Time for rising and falling edges

12.5 ns PWM resolution

PWM support for Motor Control: BLDC, PMSM, ACIM and SRM

Programmable Fault inputs

Flexible trigger for ADC conversions and configurations

Advanced Analog Features

Two ADC modules

Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit,500 ksps with one S&H

18 analog inputs on 64-pin devices and up to

32 analog inputs on 100-pin devices

Flexible and independent ADC trigger sources

Timers/Output Compare/Input Capture

Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers

Eight Output Compare modules configurable as

timers/counters

Eight Input Capture modules

Communication Interfaces

Two UART modules (10 Mbps)

Support for LIN 2.0 protocols and IrDA®

Two 4-wire SPI modules (15 Mbps)

Up to two I2C™ modules (up to 1 Mbaud) with SMBus support

Up to two Enhanced CAN (ECAN) modules (1 Mbaud) with 2.0B support

Quadrature Encoder Interface (QEI) module

Data Converter Interface (DCI) module with I2S codec support

Input/Output

5V-tolerant pins

Selectable open drain, pull-ups, and pull-downs

Up to 5 mA overvoltage clamp current

External interrupts on all I/O pins
