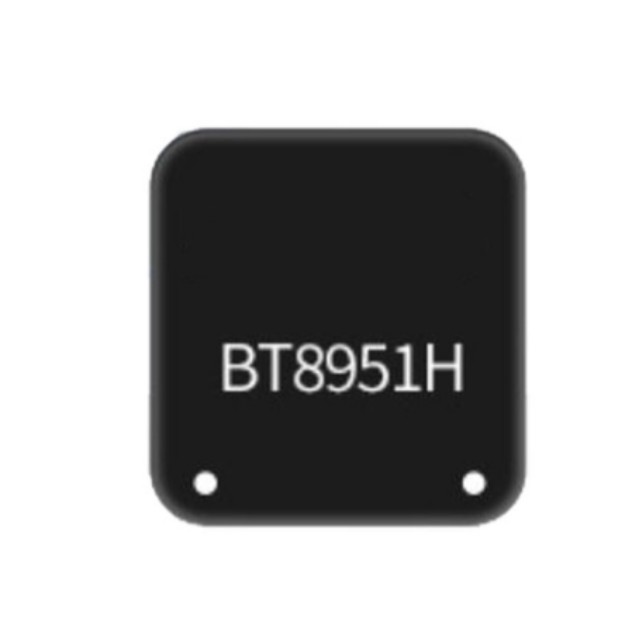

Bluetrum BT8951H is a high-performance Bluetooth audio system-on-chip (SoC) featuring a QFN40 4×6mm package, integrating a 32-bit RISC-V processor core and HIFI 4 DSP, specifically designed for high-end wireless audio devices.

BT8951H Features

CPU and Flexible I/O

High-performance 32-bit RISC-V processor core and HIFI 4 DSP;

RISC-V includes a floating-point unit (FPU) supporting floating-point operations;

RISC-V maximum speed: 125MHz; HIFI 4 maximum speed: 270MHz;

Program memory: 16Mbit internal flash memory;

On-chip RAM: 892KB;

Flexible GPIO pins with programmable pull-up/pull-down resistors;

Supports GPIO wake-up or interrupt;

Bluetooth radio

Compliant with Bluetooth 6.0 and BLE specifications QDID: Q309899 (controller) QDID: Q304434 (host)

Supports LE Audio BIS/CIS;

Transmit maximum output power +11dBm;

Receive sensitivity -94.5dBm @EDR;

Receive sensitivity -95.5dBm @ 1M BLE;

Receive sensitivity -93dBm @ 2M BLE;

Audio interface

Audio codec with 24-bit stereo DAC and 24-bit ADC;

Supports flexible audio EQ adjustment;

Supports sampling rates of 8, 11.025, 12, 16, 22.05, 32, 44.1, 48, 96, 192, and 384 kHz;

Three-channel microphone amplifier input;

Three-channel high-performance audio ADC with a signal-to-noise ratio (SNR) of up to 102 dB, supporting single-ended and differential modes;

High-performance stereo audio DAC with a signal-to-noise ratio (SNR) of up to 106 dB, supporting single-ended and differential modes;

Package: QFN40 4×6

Temperature

Operating temperature: -40°C to +85°C;

Storage temperature: -65°C to +150°C;
