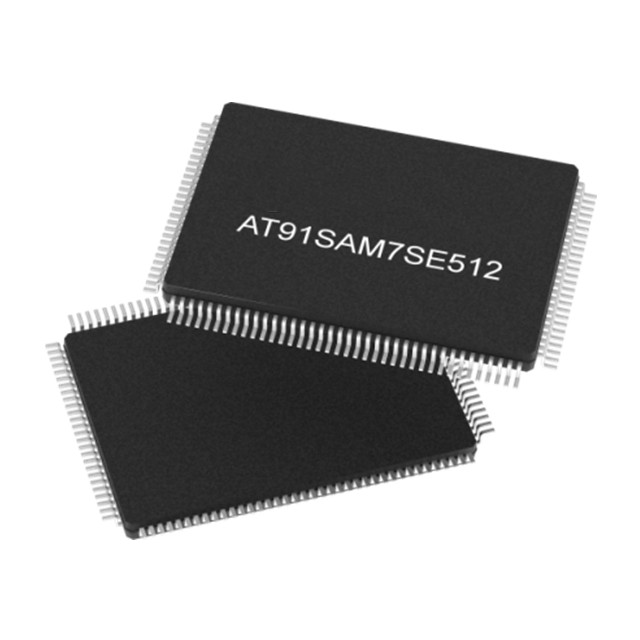

The AT91SAM7SE512B-AU is an embedded microcontroller based on an ARM7 core processor and is part of the SAM7SE series ‌. Its core size is 16/32 bits, with a working speed of 55MHz, and it features rich connectivity and peripheral device functions.

Performance parameters

The parameters of the AT91SAM7SE512B-AU microcontroller include:

Core processor: ARM7®

Kernel specification: 16/32- bits

Speed: 55MHz

Connection capabilities: EBI/EMI, I2C, SPI, SSC, UART/USART, USB

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 88

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 32K x 8

Voltage-supply (Vcc/Vdd) : 1.65V to 1.95V

Data converter: A/D 8x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 128-LQFP (20x14)

Application field

The AT91SAM7SE512B-AU single-chip microcomputer is suitable for embedded systems that require high reliability and high performance, such as industrial control, communication equipment, instruments and meters, and other fields. Its rich peripheral interface and low power consumption design make it excel in all situations that require high performance and stable operation ‌.
