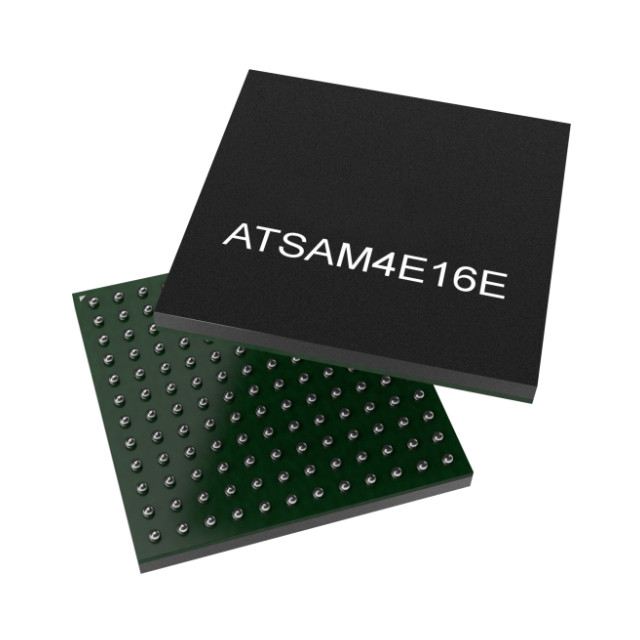

The ATSAM4E16EA-CU is a 32-bit microcontroller based on the ARM Cortex-M4 processor, with an operating frequency of up to 120 MHZ. It has 1MB of flash memory, 2KB of cache memory, and 128KB of SRAM. Youdaoplaceholder0 The microcontroller is suitable for applications that require advanced connection peripherals and a floating-point unit (FPU), such as a 10/100Mbps Ethernet MAC with IEEE 1588 support and dual CAN interfaces ‌.

The main specifications of the ATSAM4E16EA-CU microcontroller are as follows:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 117

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 128K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 16x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 144-LFBGA (10x10)

Application field

The ATSAM4E16EA-CU MCU is suitable for industrial applications that require high performance computing and complex control functions, such as industrial automation, embedded systems, smart instruments and control systems, etc. ‌.
