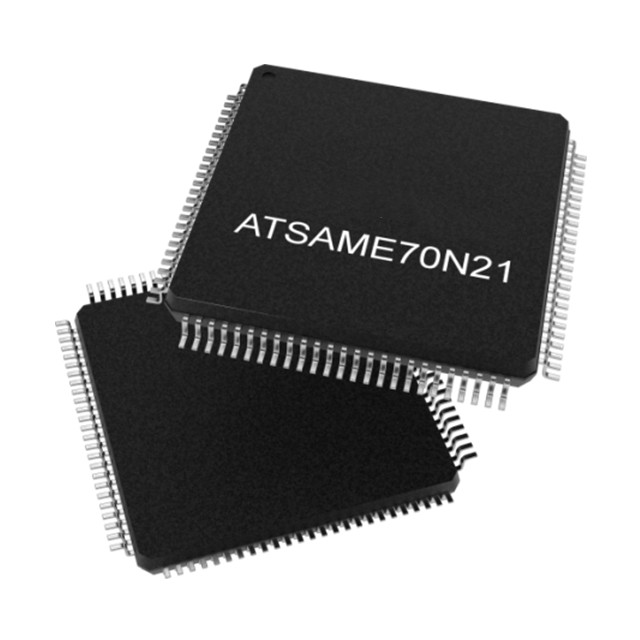

The ATSAME70N21A-AN flash memory MCU is an embedded microcontroller based on a high-performance 32-bit ARM® Cortex®-M7 processor, featuring a floating-point unit (FPU). The operating frequency of this MCU is 300MHz, featuring up to 2MB of flash memory and up to 384KB of multi-port SRAM.

Basic parameters

The parameters of the ATSAME70N21A-AN microcontroller include:

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 300MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 75

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 384K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 10x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 100-LQFP (14x14)

Application field

Due to the high performance and rich peripherals of ATSAME70N21A-AN, it is suitable for a variety of application scenarios, including but not limited to:

Industrial Control ‌ : Suitable for complex industrial control applications due to its high processing speed and rich peripherals.

Automotive electronics ‌ : Supports CAN bus communication and high-speed USB interface, suitable for automotive electronic control systems.

Communication equipment ‌ : Supports Ethernet and USB interfaces, suitable for communication equipment that requires high-speed data transfer.

Smart HOME ‌ : Combining its rich peripheral and low power consumption features, suitable for smart home control systems.
