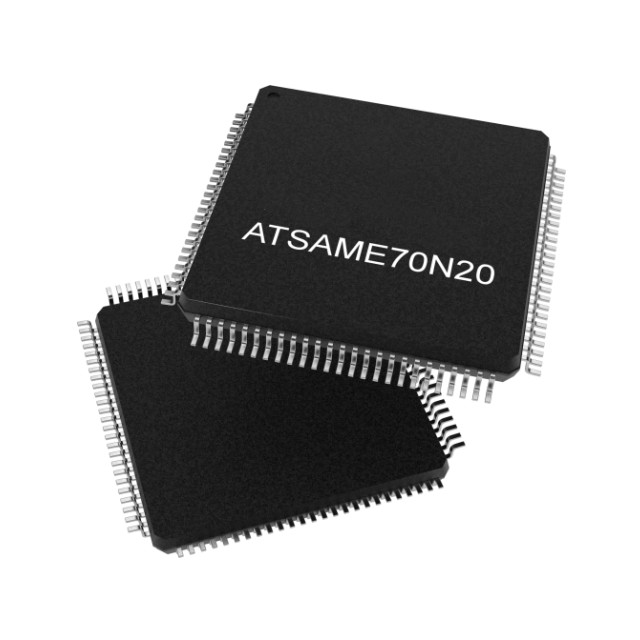

The ATSAME70N20B-AN flash memory microcontroller features a 32-bit ARM Cortex-M7 processor with a clock speed of up to 300MHz and supports floating-point operation (FPU), suitable for applications requiring high computing power ‌. Its performance parameters and typical applications are as follows:

Performance parameters

The ATSAME70N20B-AN has the following main parameters:

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 300MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 75

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 384K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.7V to 3.6V

Data converter: A/D 10x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 100-LQFP (14x14)

Typical applications

The ATSAME70N20B-AN MCU is suitable for embedded systems that require high-performance computing and multiple communication interfaces, such as industrial control, automotive electronics, smart home, medical devices, etc. Its high performance and rich peripheral interface make it excel in computing tasks that require high reliability and efficiency ‌.
