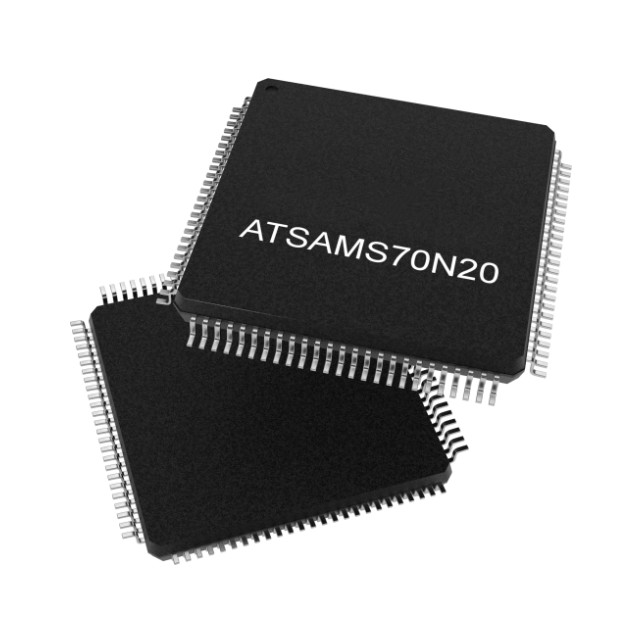

The ATSAMS70N20A-AN is a 32-bit microcontroller based on the ARM Cortex-M7 core and is part of Microchip's SAMS70 series ‌. This MCU has 1MB of flash memory and 384KB of SRAM, and its operating frequency is 300MHz. In addition, on-chip SRAM can be configured as tightly coupled memory (TCM) or system memory. The minimum access latency can be ensured through multi-port access to SRAM.

Application field

The ATSAMS70N20A-AN, with its high performance and rich peripheral interfaces, is suitable for applications that require high processing power and multiple communication interfaces, such as industrial control, automotive electronics, smart home, medical devices, etc. ‌.

Performance parameters

The ATSAMS70N20A-AN has the following main parameters:

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 300MHz

Connection capabilities: I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 75

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 384K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.08V to 3.6V

Data converter: A/D 10x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 100-LQFP (14x14)
