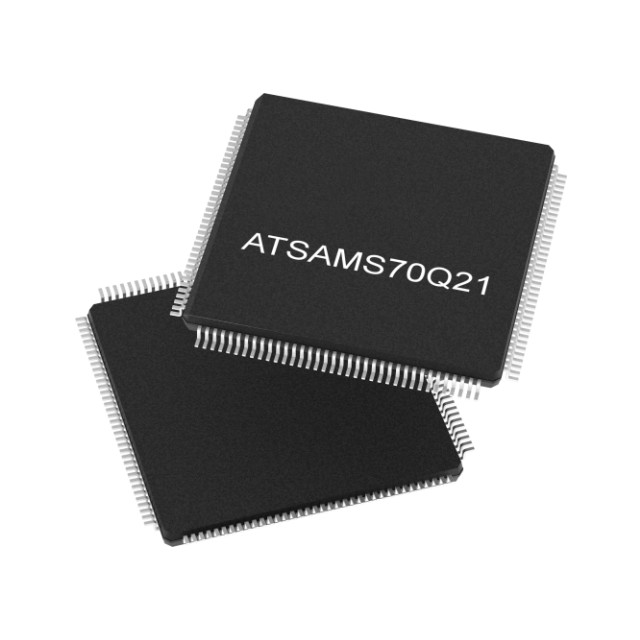

The ATSAMS70Q21A-AN is a flash microcontroller based on a high-performance 32-bit ARM® Cortex®-M7 processor (with a floating-point unit (FPU)). This device operates at a frequency as high as 300MHz, featuring up to 2MB of flash memory and up to 384KB of multi-port SRAM. On-chip SRAM can be configured as tightly coupled memory (TCM) or system memory. The minimum access latency can be ensured through multi-port access to SRAM.

Technical parameters

The main parameters of ATSAMS70Q21A-AN include:

Core processor: ARM® Cortex®-M7

Kernel specification: 32-bit single-core

Speed: 300MHz

Connection capabilities: EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 114

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 384K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.08V to 3.6V

Data converter: A/D 24x12b D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 144-LQFP (20x20)

Application field

The ATSAMS70Q21A-AN microcontroller is suitable for a variety of applications, including Internet of Things (IoT), wearable devices, digital audio, automotive electronics, motor control, metering and connectivity, ‌.
