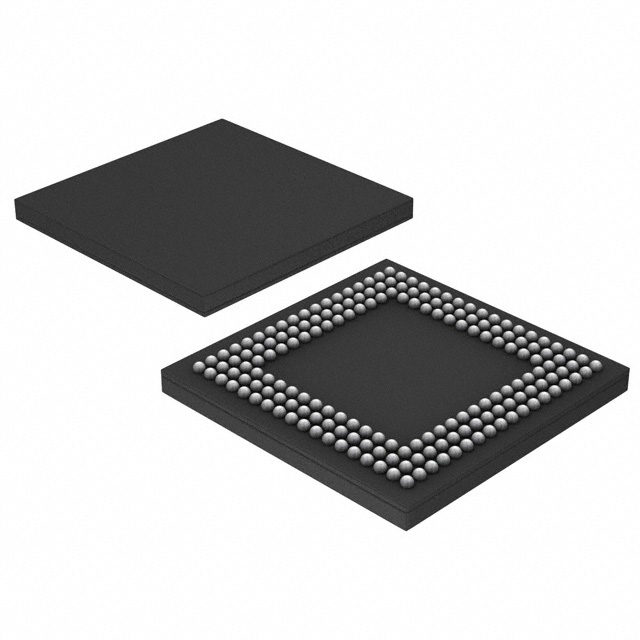

For picture reference, please see the specifications
< >

Commodity Model:LPC54616J256ET180E

Trade Name:ARM Microcontrollers - MCU

Brand:NXP

Particular Year:25+

Package:180-TFBGA

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
LPC54616J256ET180E
Package
180-TFBGA
Describe
Highly efficient microcontroller (MCU) based on the Arm ® Cortex ® -M4 core with advanced peripherals

Product Description

The LPC54616J256ET180E microcontroller integrates a high-efficiency 220 MHz Arm® Cortex®-M4 core with multiple high-speed connection options, advanced timers, and analog functions. The DSP function enables the LPC54616J256ET180E MCU device to support complex algorithms in data-intensive applications. This device has the following main parameters:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 180MHz

Connection capabilities: CANbus, Ethernet, I2C, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 145

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: 16K x 8

RAM size: 136K x 8

Voltage-supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 12x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 180-TFBGA (12x12)


The LPC54616J256ET180E MCU is equipped with up to 256KB of flash memory and an external memory interface, which can flexibly adapt to changes in demand. In addition, the LPC54616J256ET180E is suitable for application scenarios that require high performance and a rich peripheral set, such as Internet of Things (IoT) devices, industrial control, automotive electronics, and other fields.
