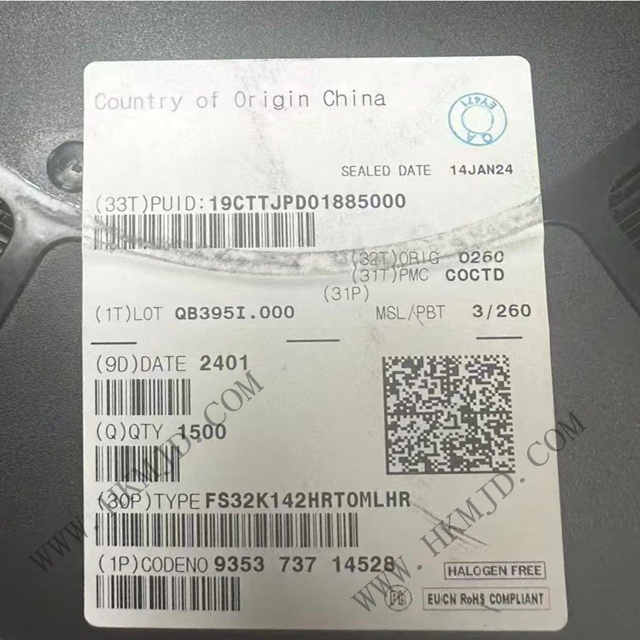

For picture reference, please see the specifications
< >

Commodity Model:FS32K142HRT0MLHR

Trade Name:ARM Microcontrollers - MCU

Brand:NXP

Particular Year:24+

Package:LQFP-64

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
FS32K142HRT0MLHR
Package
LQFP-64
Describe
ARM Microcontrollers - MCU S32K142 32-bit MCU, ARM Cortex-M4F

Product Description

The FS32K142HRT0MLHR is a 32-bit automotive-grade microcontroller (MCU) belonging to the S32K1xx series, designed for automotive electronics and industrial control applications. Featuring an ARM® Cortex®-M4F core running at up to 80MHz, the chip integrates a rich set of peripheral interfaces and meets the AEC-Q100 Grade 1 automotive specification, making it suitable for harsh environments such as body control and motor drive.


FS32K142HRT0MLHR Key Features

High-performance processor core

ARM Cortex-M4F core with DSP instruction set and floating point operation (FPU) support

Up to 80MHz main frequency for efficient real-time control

512KB Flash + 64KB SRAM to meet the needs of complex applications

Rich Peripheral Interface

2x FlexCAN (CAN FD support) for automotive network communication

1x LIN, 2x SPI, 3x I2C, 4x UART, supports various serial communications

16-channel 12-bit ADC with sampling rate up to 1.2Msps

12x PWM timers to support motor control applications

Automotive grade reliability and safety

AEC-Q100 Grade 1 certified (-40°C to +125°C)

Hardware encryption engine (AES, SHA, RNG) for enhanced data security

Fault detection and protection mechanisms (ECC, watchdog, voltage monitoring)

Low Power Design

Multiple low power modes (RUN, WAIT, STOP, VLPR)

Typical operating current 80µA/MHz, optimised for power performance


FS32K142HRT0MLHR Product Attributes

Core Processor: ARM® Cortex®-M4F

Core specification: 32-bit single core

Speed: 80MHz

Connectivity: CANbus, FlexIO, I2C, LINBus, SPI, UART/USART

Peripherals: POR, PWM, WDT

Number of I/O: 58

Program memory capacity: 256KB (256K x 8)

Programme memory type: Flash

EEPROM Size: 4K x 8

RAM Size: 32K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converter: A/D 16x12b SAR; D/A1x8b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 64-LQFP (10x10)

Package/Housing: 64-LQFP
