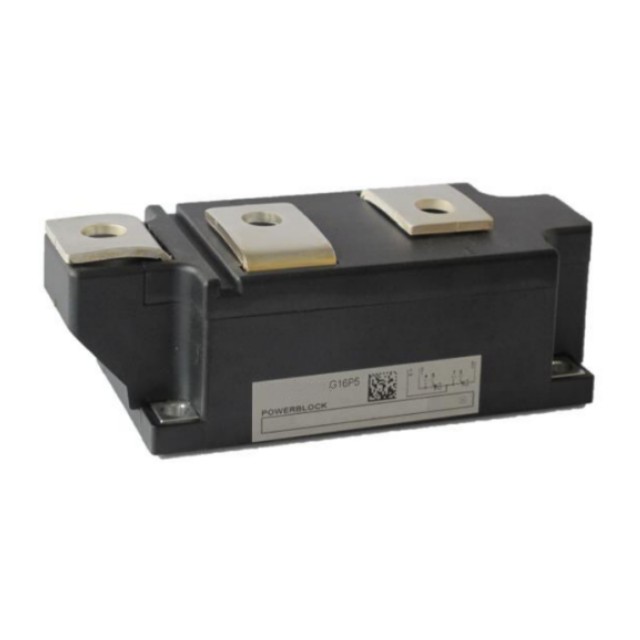

The DD560N45K is a high-performance diode module that is a high-voltage, high-current power diode with advanced packaging technology to ensure stability and reliability in high-power applications.

DD560N45K Product Features

High Voltage and High Current Handling Capability: With a maximum reverse voltage of 4500V (Vdrm), capable of withstanding non-repetitive inrush currents up to 560A (I_Tsm), and a maximum rectification current of 350A (I_F) for high power applications.

Low Forward Voltage Drop: A maximum forward voltage drop (V_F) of 2.1V helps reduce conduction losses and improve system efficiency.

High inrush current tolerance: Capable of withstanding high inrush currents such as short-term grid spikes, ensuring reliability under harsh conditions.

High DC Blocking Stability: High DC blocking stability can be maintained throughout the service life to ensure long-term stable operation of the system.

Package Format: Compact package form with good heat dissipation performance and electrical characteristics, easy to install and solder on the circuit board.

DD560N45K Typical Applications

Rectifiers for drive applications

Rectifiers for UBS

Battery chargers
