Trade Name:Diode Module
Brand:INFINEON
Particular Year:25+
Package:Module
Delivery Date:New and Original
Stock: 1000pcs

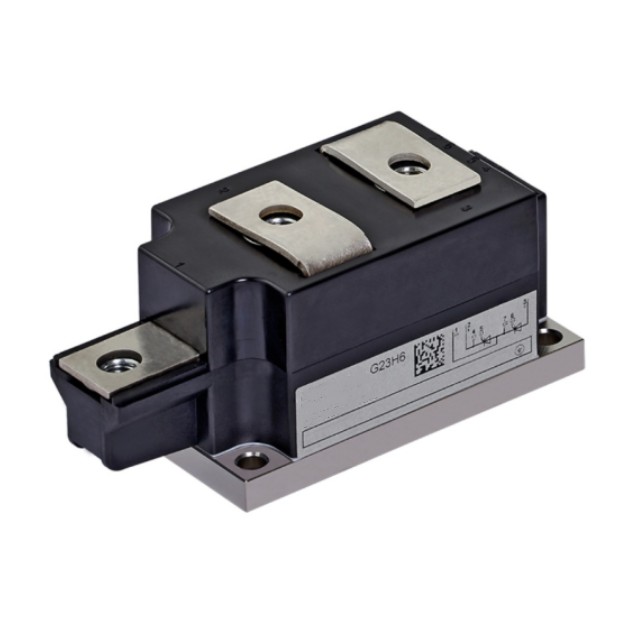

The DD175N34K is a high performance diode module designed for high voltage and high current applications. It uses advanced IGBT technology to operate stably at high voltages and high currents, making it suitable for a wide range of industrial and energy applications. The Double Series configuration provides high inrush current tolerance and excellent DC blocking stability, maintaining performance throughout its lifetime.
DD175N34K Features
Pressure contact technology for high reliability
Industry standard package
Electrically insulated backplane
Short-circuit in case of failure
Ruggedised
Benefits
Designed to meet high overload and power cycling requirements
High DC blocking stability throughout service life
High inrush current capability, especially for short-term grid spikes
Multiple power modules available from one supplier
DD175N34K Specifications
Diode configuration: 1 pair of serial connections
Technology: Standard
Voltage - DC reverse (Vr) (max): 3400 V
Current - Average Rectification (Io) (per diode): 223A
Voltage - Forward (Vf): 2.05 V @ 600 A at different If's
Speed: Standard Recovery >500ns, > 200mA (Io)
Current at Vr - Reverse Leakage: 20 mA @ 3400 V
Operating Temperature - Junction: -40°C ~ 150°C
Mounting Type: Chassis Mount
Package/Housing: Module
Supplier Device Package: Module
DD175N34K Applications
Centralised inverter solutions
Medium voltage drives
Motor control
Uninterruptible Power Supplies (UPS)
