The KW45Z41083AFTBT microcontroller integrates a 96MHz Cortex-M33 application core, a dedicated CM3 wireless module core, and an isolated EdgeLock security zone. A flash-based wireless module kernel with dedicated SRAM provides a highly configurable and upgradeable software implementation wireless module, freeing up resources on the main kernel for customer application space.

Product Specifications:

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit

Speed: 96MHz

Connection capability: CANbus, HMI, I²C, SPI, UART/USART

Peripheral: DMA, PWM, WDT

Number of I/ OS: 29

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 128K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data converter: A/D 14x16b SAR

Oscillator type: -

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount, wets flanks

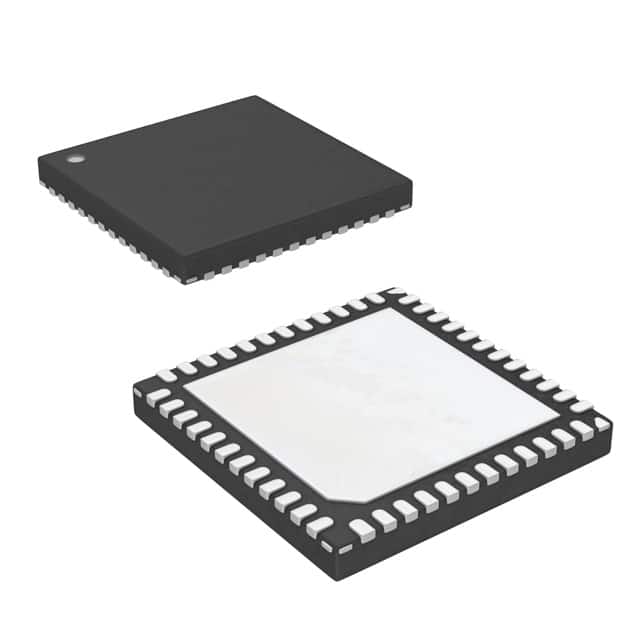

Package/housing: 48-VFQFN bare pad

Supplier Package: 48-HVQFN (7x7)
