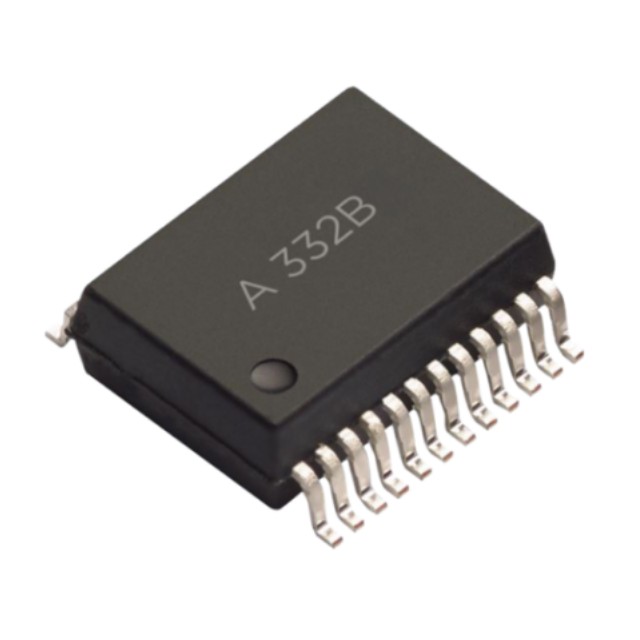

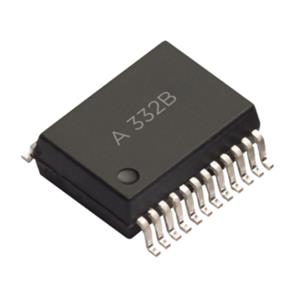

Commodity Model:ACFJ-332B-500E

Trade Name:Gate Drive Optocouplers

Brand:BROADCOM

Particular Year:25+

Package:SO-24

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
BROADCOM
Model
ACFJ-332B-500E
Package
SO-24
Describe
Industrial Dual High-Speed Gate Drive Optocoupler for MOSFETs/GaNs

Product Description

The Broadcom® ACFJ-332B-500E driver is a dual-channel, highspeed, rail-to-rail output gate drive optocoupler, which comes in a compact, surface-mountable SO-24 package with two independent isolated channels for space savings. It provides an isolation voltage of 5000 VRMS between input and output channels and functional isolation voltage up to 700 VRMS between two output channels.


The ACFJ-332B-500E operates with a wide range of input voltage and driver output voltage. It also offers enhanced features such as an input buffer drive with TTL and CMOS compatible logics, an enable pin (EN) to support a system functional safety requirement, programmable dead time between two driver channels, and input power supply under-voltage lockout protection to drive MOSFET/GaN at high-frequency DC-DC and AC-DC converters.


The Broadcom isolation products provide reinforced insulation and reliability that deliver safe signal isolation critical in high-temperature industrial applications.


Features Of ACFJ-332B-500E

 Industrial temperature range: –40°C to +125°C

 Wide operating supply range:

– VDD1 range: 3.0V to 5.5V

– VDDA and VDDB range: 10V to 25V

 Low supply current allows bootstrap half-bridge topology

 TTL and CMOS compatible inputs

 EN pin for enhanced safety feature

 Programmable dead time

 Under-voltage lockout (UVLO) protection with hysteresis:

– VDD1 UVLO: 2.7V

– VDDA and VDDB UVLO: 8.6V

 Rail-to-rail output driver voltage

 Minimum peak output current: ±2.4A

 Minimum Miller clamp sinking current: 1A

 Maximum propagation delay: 65 ns

 Maximum channel-to-channel skew: 15 ns

 High noise immunity

– Common mode transient immunity (CMTI): 150 kV/μs at VCM = 1500V

 Dual isolated channels in SO-24 package with 8.3-mm creepage and clearance

 3.5-mm creepage between two output drivers

 Worldwide safety approvals:

– UL/cUL 1577 5000 VRMS for 1 minute

– IEC/EN 60747-5-5 VIORM = 1414 VPEAK


Applications Of ACFJ-332B-500E

 Power supply and EV charging

 Renewable energy inverter and storage

 Motor drive for industrial automation and robotics

Associated Products

Model

Brand

Package

Quantity

Describe

ACPL-352J-500E

BROADCOM

SOIC-16

5000

5A Gate Drive Optocoupler with Integrated Over Current Sensing, FAULT, GATE, and UVLO Status Feedback

ACFJ-3530T-000E

BROADCOM

SO-24

2000

Automotive R²Coupler™ Smart Gate Drive Optocoupler

ACFJ-3531T-000E

BROADCOM

SO-24

2000

Automotive R²Coupler™ Smart Gate Drive Optocoupler

ACFJ-3262T-000E

BROADCOM

SO-24

2000

Automotive Dual-Channel 10A Peak Gate Drive Optocoupler for MOSFET/IGBT

ACFL-3161T-000E

BROADCOM

SO-12

2000

Automotive 600V 10A Peak Basic Gate Drive Optocoupler for SiC MOSFET/IGBT

ACFJ-3439T-000E

BROADCOM

SO-24

3000

The ACFJ-3439T is a 17A peak smart gate drive optocoupler
