The CYT3BBBCEBQ1BZEGS is an Arm® Cortex® -M7-based automotive microcontroller belonging to the CYT3BBB family equipped with 4 MB flash memory for high performance. The family features a best-in-class dedicated standby mode controller with its own voltage domain that not only supports low-power mode, but also performs certain operations while the rest of the microcontroller is in standby, such as analog measurement, CAN and LIN communication, RTC, and basic processing.

TRAVEO™ T2G devices are manufactured using an advanced 40nm process, they are ideal for body control modules, HVAC, lighting, and safety via HSM, Arm® Cortex®-M0+ and dual bank flash memory for FOTA.

specification

Core: ARM Cortex M0+, ARM Cortex M7

Program memory size: 4.06MB

Data RAM size: 768 kB

Data bus width: 32 bit

ADC resolution: 3 x 12 bit

Maximum clock frequency: 100 MHz, 250 MHz

Number of inputs/outputs: 220 I/O

Supply voltage: 2.7V to 5.5V

Operating temperature: -40 °C to + 125°C

Qualification: AEC-Q100

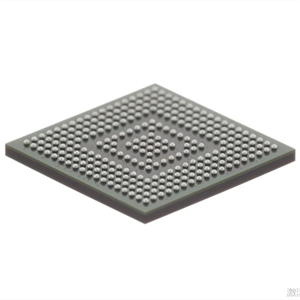

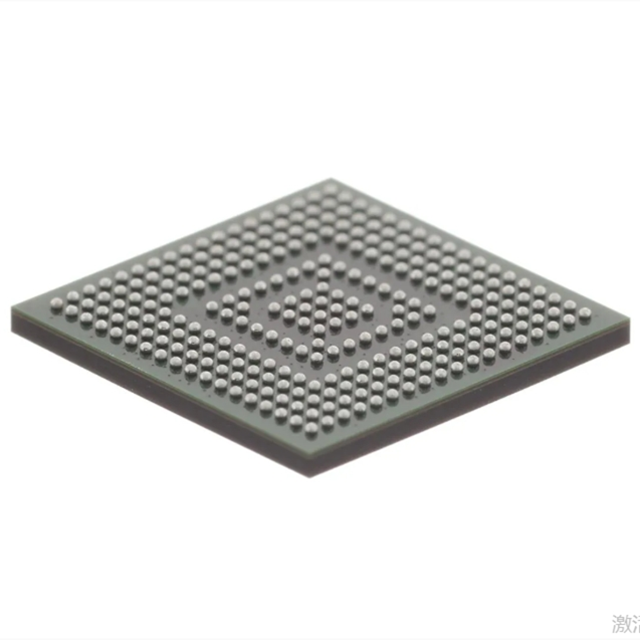

Package/box: BGA-272

Data Ram type: SRAM

Data ROM size: 64 kB

Data Rom Type: ROM

Interface type: CAN FD, I2C, SPI, UART

Humidity sensitivity: Yes

Number of ADC channels: 18 channels

Number of timers/counters: 75 x 16 bit, 8 x 32 bit

Working power supply voltage: 2.7V to 5.5V

Processor series: TRAVEO T2G

Product: Microcontrollers
