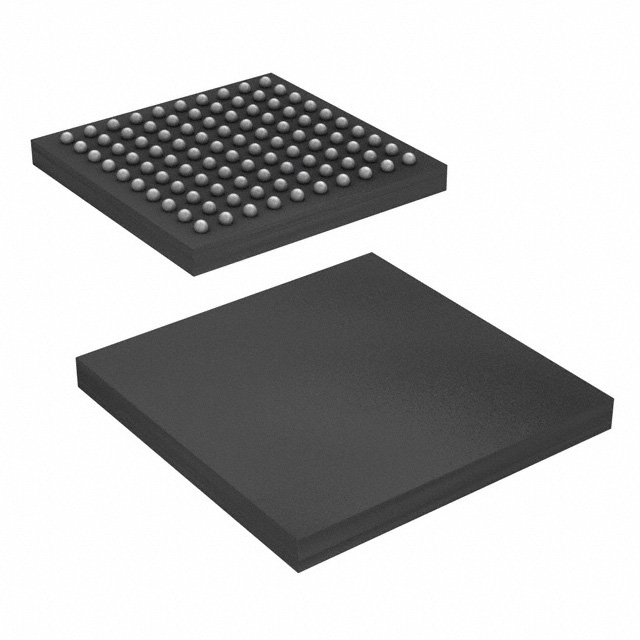

The FS32K144HFT0VMHR S32K 32-bit automotive general purpose microcontrollers (MCUs) are a series of AEC-Q100 compliant, scalable MCUs based on the 32-bit Arm® Cortex®-M4F and Cortex-M0+ cores for general purpose automotive and high reliability industrial applications.

These families offer a hardware and software compatible range with scalability and a wide range of performance, memory and feature options. These MCUs offer ISO, CAN FD, CSEc hardware safety, ASIL-B ISO26262 functional safety and ultra-low power performance.

Product Category: ARM Microcontrollers - MCUs

Family: S32K14x

Mounting Style: SMD/SMT

Package / Case: BGA-100

Core: ARM Cortex M4F

Program memory size: 512 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Max. clock frequency: 112 MHz

Data RAM size: 64 kB

Supply voltage - min: 2.7 V

Supply voltage - max: 5.5 V

Min. operating temperature: - 40 C

Max. operating temperature: + 105 C

Qualification: AEC-Q100

Analogue supply voltage: 2.7 V to 3 V

DAC resolution: 8 bit

Data Ram type: SRAM

Data ROM size: 4 kB

Data Rom type: EEPROM

I/O voltage: 3.3 V

Interface types: I2C, I2S, LIN, PWM, SPI, UART

Humidity sensitivity: Yes

Number of ADC channels: 16 Channel

Number of timers/counters: 4 Timer

Product: MCU+DSP+FPU

Product Type: ARM Microcontrollers - MCU

Program memory type: Flash

Factory Packed Quantity: 1500

Applications

Automotive

Industrial

Security & Surveillance

Smart Home

HVAC

Motor Control
