S32G399AACK1VUCT Vehicle Network Processors combine Controller Area Network (CAN), Local Interconnect Network (LIN), and FlexRay networking with high data rate Ethernet networking. These processors support the needs of vehicle architectures involving service-oriented gateways, vehicle computers, domain controllers, zonal processors, and safety processors.

Features

Extend S32G family capabilities with software and pin compatibility with S32G2 processors

Up to 8 Arm® Cortex®-A53 cores with Arm Neon™ technology organized in two clusters of four cores with optional cluster lockstep for applications and services

Up to 4 Arm Cortex-M7 Dual-Core LockStep (DCLS) complexes for real-time applications

Up to 20MB of on-chip system SRAM

Low Latency Communication Engine (LLCE) for automotive networks acceleration

Packet Forwarding Engine (PFE) for Ethernet networks acceleration with three ports supporting 2.5Gbps

Hardware Security Engine (HSE) for secure boot and accelerated security services

16 isolation domains with eXtended Resource Domain Control (XRDC)

Advanced functional safety hardware and software for ASIL D systems

AEC-Q100 Grade 2 device

-40°C to 105°C temperature range

Applications

Automotive access point

Automotive data logger

Automotive zone controller

Domain controllers

Firmware Over-the-Air (FOTA)

Gateway

In-vehicle networks

Safety processors

Service-oriented gateway

Vehicle compute

Zonal gateways

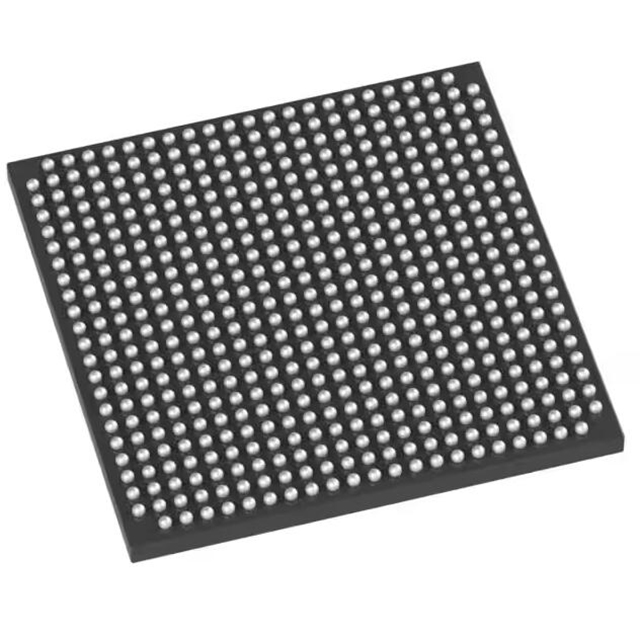

Integrated Circuit Chip S32G399AACK1VUCT S32G3 Vehicle Network Processors
