Trade Name:Flip-Flop
Brand:TI
Particular Year:24+

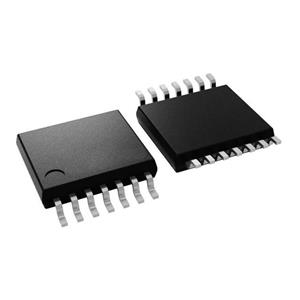

Package:TSSOP-14
Delivery Date:New and Original
Stock: 1000pcs
SN54SC2T74MPWTSEP - Radiation Tolerant, Dual D-Type Flip-Flop With Integrated Translation
Product Overviews
SN54SC2T74MPWTSEP is Radiation Tolerant, Dual D-Type Flip-Flop With Integrated Translation. It contains two independent D-type positive-edge-triggered flip-flops. A low level at the preset ( PRE) input sets the output high. A low level at the clear ( CLR) input resets the output low. Preset and clear functions are asynchronous and not dependent on the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs (Q, Q) on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the input clock (CLK) signal. Following the hold-time interval, data at the data (D) input can be changed without affecting the levels at the outputs (Q, Q). The output level is referenced to the supply voltage (V CC) and supports 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels.
Product Features
• Wide operating range of 1.2V to 5.5V
• 5.5V tolerant input pins
• Output drive up to 25 mA AT 5V
• Latch-up performance exceeds 250 mA per JESD 17
Applications
• Enable or disable a digital signal
• Controlling an indicator LED
• Translation between communication modules and system controllers
