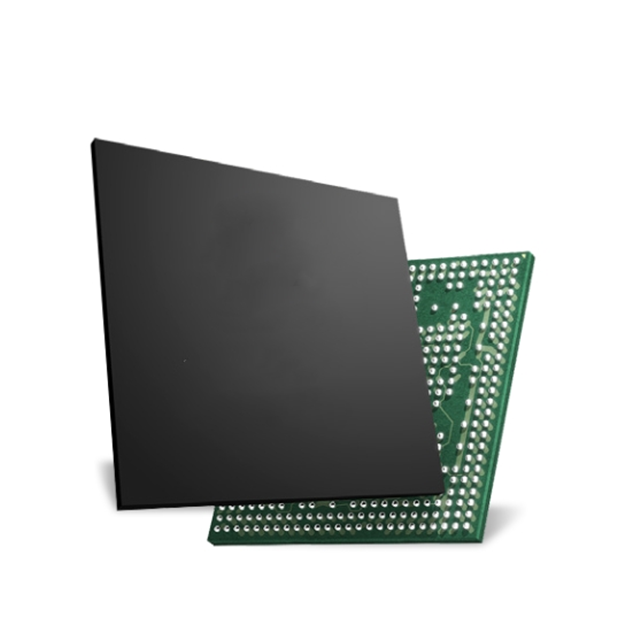

The BCM53112MB0ILFBG is a highly integrated fast Ethernet switch designed for high-end FE applications. The BCM53112 features eight 10/100BASE-T ports with integrated EPHY, four 100FX/1000FX SGMII ports, and two 1GbE/2.5GbE SGMII+ ports. These switches are also equipped with high-end forwarding engines required for advanced applications. These engines include intelligent QoS mechanisms, flexible compact filter processors (CFP), sophisticated VLAN operation capabilities, security features, and packet synchronization for time-sensitive networks.

Features

Embedded ARM Cortex-M7, 400MHz, CPU

Eight 10/100/1000Base-T ports with integrated ultra-low power GPHY

One QSGMII port

One or two 2.5GE/10GE SGMII/XFI ports, supporting KR

1 RGMII

Switching cascade for two-port counting

16K entry MAC address table

1K Multicast group support

1MB packet buffer

srTCM and trTCM meters (support color recognition and color blindness modes)

Each port has 8 CoS queues with priority flow control

IEEE 802.1p, MAC, and DSCP packet classification

Per queue and per port shaper

4K VLAN with Virtual Switching Instance (VSI) support (IEEE 802.1Q)

1K CFP rule support (up to 192b keys)

Image and sFlow sampling

Loop detection

1K packet and byte counters

16 LAG trunks (32 supported across cascaded switches)

VLAN mapping and conversion

Protection and security mechanism: Port authentication (802.1x), isolation group, BUM traffic metering, DOS filtering

IEEE802.3az Energy Efficient Ethernet (EEE)

Port extender based on 802.1BR standard

AVB and Time Sensitive Network (TSN) support (802.1Qbv, 802.1Qav)

Supports IEEE 1588 and SyncE, including 802.1ASrev

Jumbo frames: up to 10K bytes

13mm x 13mm FBGA package
