The BCM81381A0KFSBG is a low-power, low-latency PHY that integrates retimer and equalizer functions to support 100 Gigabit Ethernet (GbE), 40GbE, 25GbE, and 10GbE applications.

Designed in 16nm CMOS technology, the BCM81381 provides a low-power, low-latency solution with integrated AC coupling capacitors that interface directly with Broadcom's switch products.

Features

Dual 100GE PHY supports CR4, SR4, and LR4

Article 92 100G-CR4 transmission training

Article 91 100G FEC, can be bypassed

Article 85 40G-CR4 transmission training

25GbE mode with 8 independent 25GBase-CR/SR/KR (according to IEEE 802.3by) or 25GBase-CR1/KR1 (according to the 25G Consortium specification)

50GbE mode, 50GBase-KR2 to 50GBase-CR2/KR2 (according to 25G Alliance specification)

Supports 10GbE and 25GbE operations in each of the eight channels

Low speed CFP2/CFP4/QSFP2/QSFP+ Data I/O

Low power 16nm CMOS design

High performance receive equalization >35dB channel loss

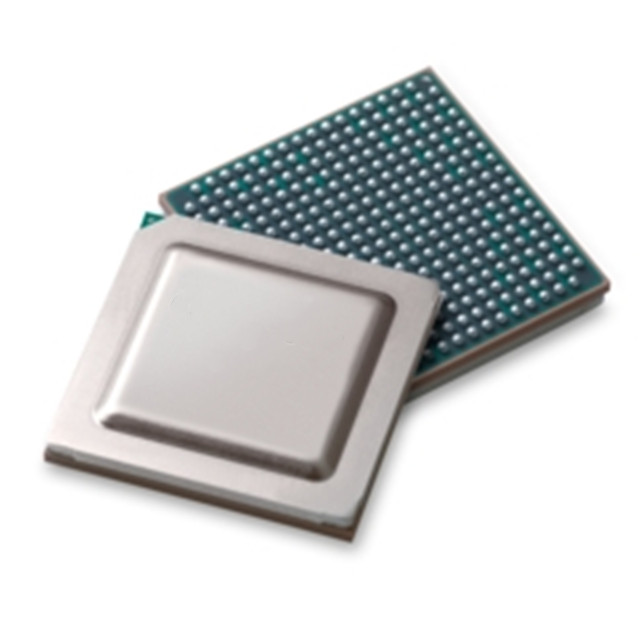

19x19mm BGA package, 1mm pitch
