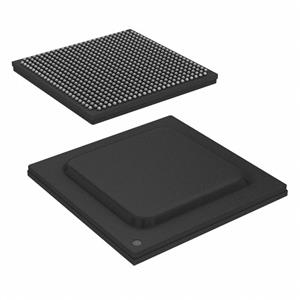

The LA1200X7H08AB programmable baseband processor provides high performance digital signal processing, performance scalability and application flexibility for 5G sub-6GHz and millimeter wave fixed wireless access devices such as integrated small base stations, O-RAN distributed units, wireless units and client devices (Cpes). It can also be used for proprietary wireless applications such as defense and civil radio systems and non-terrestrial networks (NTN).

The LA12xx series features the following unique combinations:

High Performance Vector Signal Processing Accelerator (VSPA)

• Forward Error Correction Accelerator (FECA)

• Integrated Data Conversion Subsystem (ADC/DAC)

Features

Six 32-bit e200 Power® Architecture core complexes up to 614.4MHz

Up to 8 VSPA3-16@614.4 MHz (=1.3TFLOP)

2MB of on-chip SRAM memory

Two PCIe Gen3, a total of 8 channels

Two {I+Q} HS-DCS complexes with sampling rates of 1966.08 or 983.04Msps

Dual channel, less than 1GHz RF channel, bandwidth range in the millimeter wave band

Four {I+Q} LS-DCS complexes with sampling rates up to 491.52Msps

Four-channel, <140MHz RF channel, bandwidth range is sub-6GHz band

Forward error correction Unit (FECU)

gNB and UE modes compliant with 3GPP 5G/NR 38.212 standard

Polar decoder/encoder

LDPC decoder/encoder

FC-PBGA encapsulation
