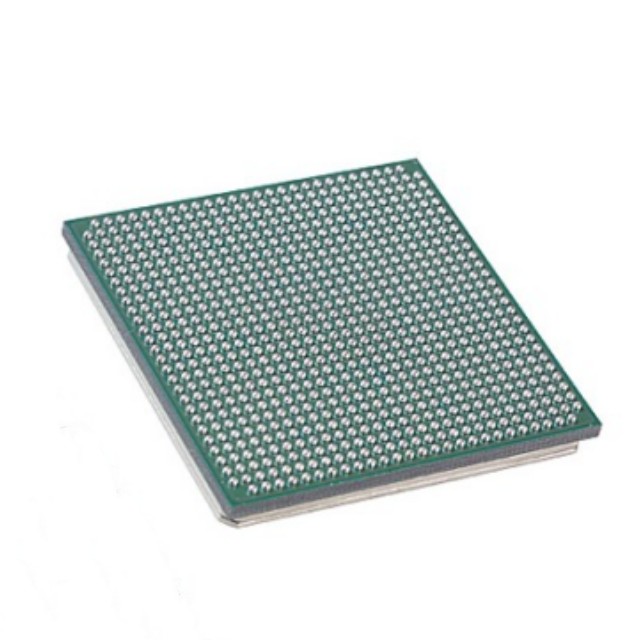

The LS1023ABE9MQB processor is the first quad-core, 64-bit Arm® processor for embedded networking from NXP. The LS1023A (dual-core version) and LS1043A (quad-core version) deliver more than 10 Gbps of performance in a flexible I/O package that supports fanless design. The SoCs are purpose-built solutions for small form factor networking, industrial and automotive applications, with optimised cost of materials (BOM) for economical low-end PCBs, reduced power supply costs, and a single-clock design.

Category: Embedded Microprocessors

Family: QorlQ LS1

Package: Tray

Part Status: On Sale

Core Processor: ARM® Cortex®-A53

Cores/Bus Width: 2-core, 64-bit

Speed: 1.2GHz

RAM Controller: DDR3L, DDR4

Graphics Acceleration: None

Ethernet: 1GbE (4), 2.5GbE (2), 10GbE (1)

SATA: SATA 6Gbps (1)

USB: USB 3.0 + PHY (3)

Operating Temperature: -40°C ~ 105°C (TA)

Safety Features: ARM TZ, boot safety

Mounting Type: Surface Mount

Package/Housing: 780-BFBGA, FCBGA

Vendor Device Package: 780-FBGA (23x23)

Additional Interfaces: eMMC/SD/SDIO, I2C, SPI, UART
