ADUC7126BSTZ126 - Precision Analog Microcontroller, 12-Bit Analog I/O, Large Memory, ARM7TDMI MCU with Enhanced IRQ Handler

Part Number: ADUC7126BSTZ126

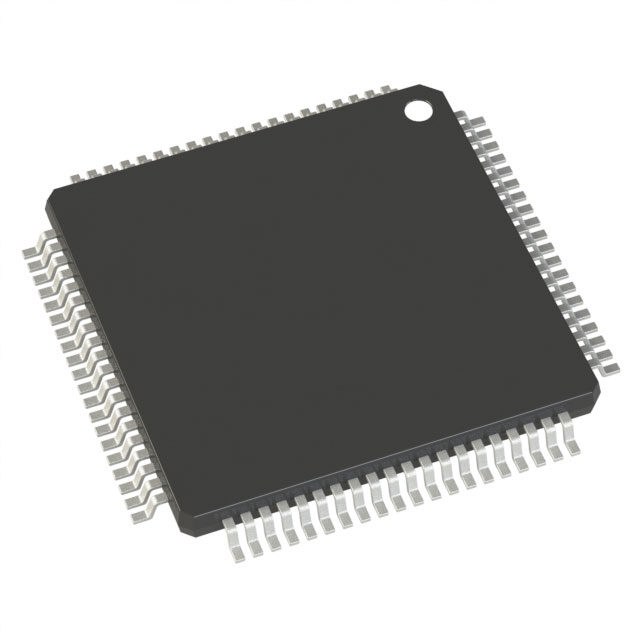

Package: LQFP-80

Type: ARM Microcontrollers

Description: Microcontroller IC 16/32-Bit 41.78MHz 126KB (63K x 16) FLASH 80-LQFP

Product Overviews

ADUC7126BSTZ126 is a fully integrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash/EE memory on a single chip. The devices operate from an on-chip oscillator and a PLL generating an internal high frequency clock of 41.78MHz. This clock is routed through a programmable clock divider from which the MCU core clock operating frequency is generated.

Product Features

● Analog input/output

Multichannel, 12-bit, 1MSPS ADC

Up to 16 ADC channels

Fully differential and single-ended modes

0 V to VREF analog input range

12-bit voltage output DACs

Up to 4 DAC outputs available

On-chip voltage reference

On-chip temperature sensor (±3°C)

Voltage comparator

● Microcontroller

ARM7TDMI core, 16-bit/32-bit RISC architecture

JTAG port supports code download and debug

● Clocking options

Trimmed on-chip oscillator (±3%)

External watch crystal

External clock source up to 41.78MHz

41.78MHz PLL with programmable divider

Applications

Industrial control and automation systems

Smart sensors, precision instrumentation

Base station systems, optical networking

Patient monitoring
