Trade Name:Microprocessor - MPU
Brand:NXP
Particular Year:24+
Package:LFBGA548
Delivery Date:New and Original
Stock: 2000pcs

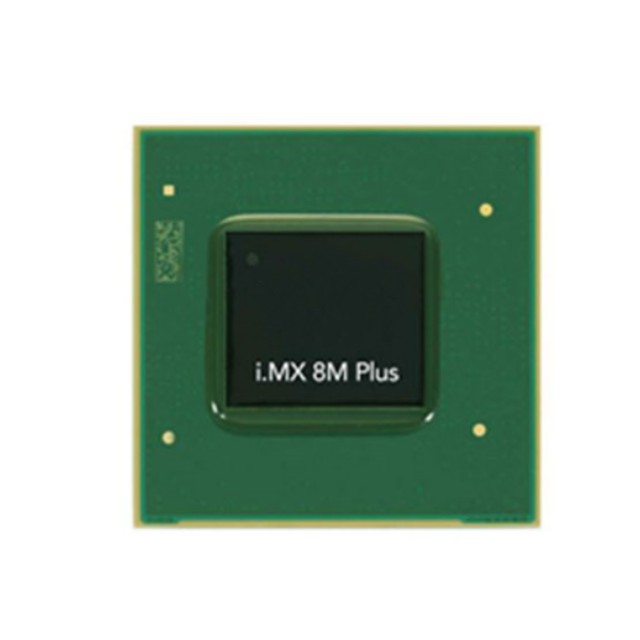

MIMX8ML8DVNLZDB is the i.MX 8M Plus series focused on machine learning and vision, advanced multimedia, and industrial automation with high reliability. It is designed to meet the needs of smart home, building, city and Industry 4.0 applications.
• Powerful 4-core or dual-core Arm® Cortex®-A53 processor with Neural Processing Unit (NPU) running at up to 2.3 TOPS.
• Two Image Signal Processors (ISPs) and two camera inputs to create an efficient advanced vision system.
• Multimedia capabilities include video encoding (including h.265) and decoding, 3D/2D graphics acceleration, and multiple audio and voice functions.
• Real-time control via Cortex-M7. Powerful control network with CAN FD and dual Gigabit Ethernet with Time Sensitive Networking (TSN).
• DRAM tandem ECC for high industrial reliability.
The i.MX 8 application processor is part of the NXP EdgeVerse™ edge computing platform. Feature Multi-Core Processing
Features
4 Cortex-A53 core platform running at up to 1.8GHz per core
32KB L1-I cache / 32 kB L1-D cache
512 kB L2 cache
1 Cortex-M4 core running at up to 400MHz
16 kB L1-I cache / 16 kB L2-D cache
GPU
3D GPU (1 shader, OpenGL® ES 2.0)
2D GPU
Display Interface
1 MIPI DSI (4-channel) with PHY
Video Playback
1080p60 VP9 Profile 0, 2 (10-bit) decoder, HEVC/H.265 decoder, AVC/H.264 baseline, Main, Advanced decoder, VP8 decoder
1080p60 AVC/H.264 Encoder, VP8 Encoder
Audio
5 SAI (12Tx + 16Rx external I2S channels), 8 PDM inputs
Camera Interface
1 MIPI CSI (4 channels) with PHY
USB
2 USB 2.0 controllers with integrated PHYs
PCIe
1 PCIe 2.0 (1 lane) with L1 low power sub-state
Ethernet
1 Gigabit Ethernet (MAC) with AVB and IEEE 1588, Energy Efficient Ethernet (EEE) for low power devices
Operating Systems
Linux, Android, Windows 10 IoT kernel, FreeRTOS
Temperature
Consumer electronics (0°C to 95°C Tj)
Industrial control (-40°C to 105°C Tj)
Model
Brand
Package
Quantity
Describe
NXP
548-FCBGA
1000
ARM® Cortex®-A53, ARM® Cortex®-M7, Hi-Fi4 DSP Embedded - System on Chip (SoC) IC I.MX 8ML
