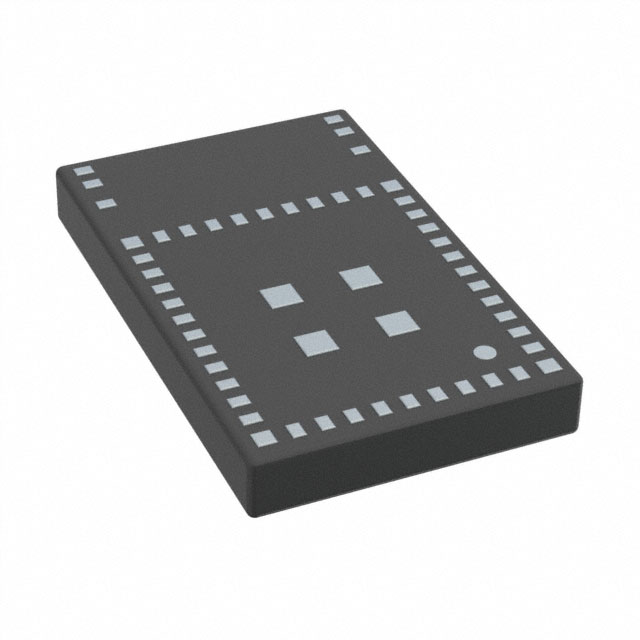

Description: QN9080-001-M17Y is a fully certified module that supports Bluetooth® 5 and NFC. It has extremely low power consumption, high integration, offers a rich feature set, and is FCC/CE/IC/MIC certified.

The module is based on a QN9080 Bluetooth MCU with an Arm® Cortex®-M4F core and integrates a dedicated fusion Sensor Coprocessor (FSP). With 512 KB of onboard flash memory and 128 KB of SRAM, it provides plenty of space and flexibility to support complex applications and connection protocol stacks.

Product attribute

Type: TxRx + MCU

Rf Series/Standard: Bluetooth

Protocol: Bluetooth v5.0

Modulation: FSK

Frequency: 2.4GHz ~ 2.4835GHz

Data rate (Max.) : 2Mbps

Power - Output: 2dBm

Sensitivity: -92.7dBm

Storage capacity: 512kB flash, 128kB SRAM

Serial interface: ADC, GPIO, I2C, SPI, UART, USART, USB

GPIO: 32

Voltage - Power supply: 1.67V ~ 3.6V

Current - Reception: 4mA

Current - Transmission: 3.5mA

Operating temperature: -40°C ~ 85°C

Mounting type: Surface mount type

Package/case: 54-LFLGA

Supplier Package: 54-LFLGA (9.7x6)

Basic product number: QN9080
