Trade Name:1SG165HN3F43I2VG
Brand:Intel
Particular Year:24+
Package:FBGA-1760
Delivery Date:New and Original
Stock: 1000pcs

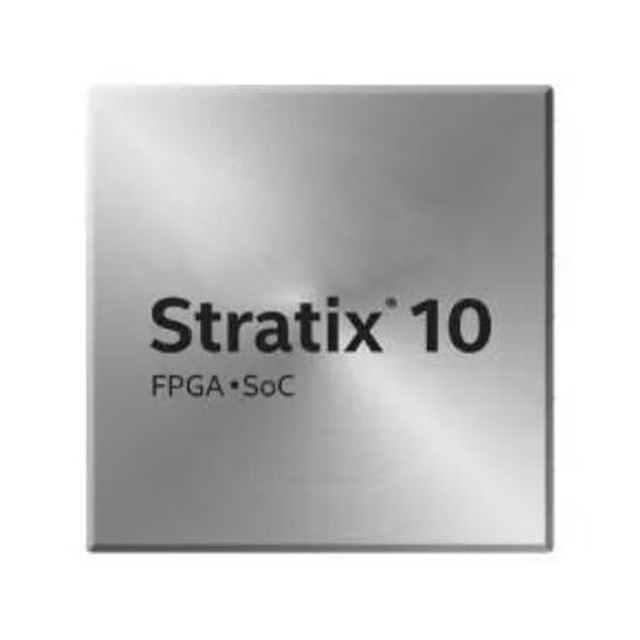

1SG165HN3F43I2VG is Stratix® 10 GX Field Programmable Gate Array (FPGA) IC, deliver up to 1 GHz core fabric performance and contain up to 10.2 million LEs in the fabric.
Product Attributes
Number of LABs/CLBs 206250
Number of Logic Elements/Cells 1650000
Number of I/O 688
Voltage - Supply 0.77V ~ 0.97V
Mounting Type Surface Mount
Operating Temperature -40°C ~ 100°C (TJ)
Package / Case 1760-BBGA, FCBGA
Supplier Device Package 1760-FBGA (42.5x42.5)
Product Features
Technology
- 14 nm Intel tri-gate (FinFET) process technology
- SmartVID controlled core voltage, standard power devices
- 0.85V fixed core voltage, low static power devices available
Low Power Serial Transceivers
- Up to 96 total transceivers available
- Continuous operating range of 1 Gbps to 28.3 Gbps for Intel Stratix 10 GX/SX devices
- Backplane support up to 28.3 Gbps for Intel Stratix 10 GX/SX devices
- Extended range down to 125 Mbps with oversampling
- Adaptive linear and decision feedback equalization
- Transmit pre-emphasis and de-emphasis
- Dynamic partial reconfiguration of individual transceiver channels
- On-chip instrumentation (Eye Viewer non-intrusive data eye monitoring)
General purpose I/Os
- Up to 2,304 total GPIO available
- 1.6 Gbps LVDS—every pair can be configured as an input or output
- 1333 MHz/2666 Mbps DDR4 external memory interface
- 1067 MHz/2133 Mbps DDR3 external memory interface
- 1.2 V to 3.3 V(1) single-ended LVCMOS/LVTTL interfacing
- On-chip termination (OCT)
