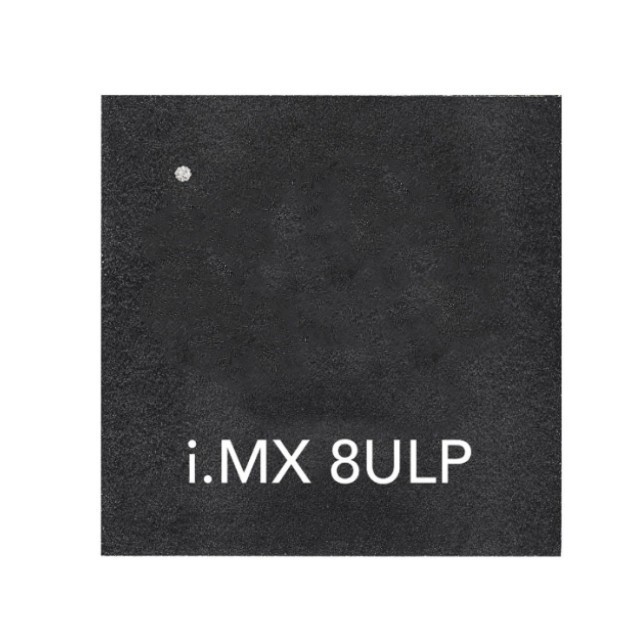

MIMX8US5DVP08SC is the i.MX 8ULP application processor delivers low-power applications for IoT and industrial applications with advanced security EdgeLock Secure Enclave integration to support secure and energy-efficient edge computing.

The i.MX 8ULP family consists of dual Arm Cortex -A35 cores with scalable performance and NXP's innovative Energy Flexible Architecture implementation that uniquely combines heterogeneous domain computing, design techniques, and processor fine-tuning capabilities with intrinsically supported processing technologies.

Features

CPU

Up to two Arm®Cortex®-A35 @800MHz

Arm Cortex-M33 @216MHz

Cadence®Tensillica® Hifi 4 DSP @475MHz for advanced audio, voice and ML processing; Fusion DSP @200MHz for low-power voice and sensor hub processing

EdgeLock™ security zones

RISC-V powered power management subsystem (µpower)

Memory

On-chip SRAM with a total capacity of 896KB

External memory

LPDDR3/LPDDR4/LPDDR4X

SPI-NOR

SPI-NAND

Graphics

3D GPUs including: Open GL®ES 3.1, OpenCL™, Vulkan®

2D GPU

1 MIPI DSI (4-channel) with PHY

Up to 24-bit RGB (DBI/DPI)

Colour EPD display

Connections

10/100 Ethernet

FlexCAN

Monitor/Camera

1 MIPI CSI (2 channels) with PHY

Package

FCCSP 9.4X9.4mm2

MAPBGA 15x15mm2

Temperature Range

Industrial control (-40°C to 105°C)

Commercial (0°C to 95°C)
