Commodity Model:IAUCN04S7L019

Trade Name:IAUCN04S7L019

Brand:INFINEON

Particular Year:23+

Package:TDSON-8

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IAUCN04S7L019
Package
TDSON-8
Describe
OptiMOS™ 7 40 V Power MOSFETs

Product Description

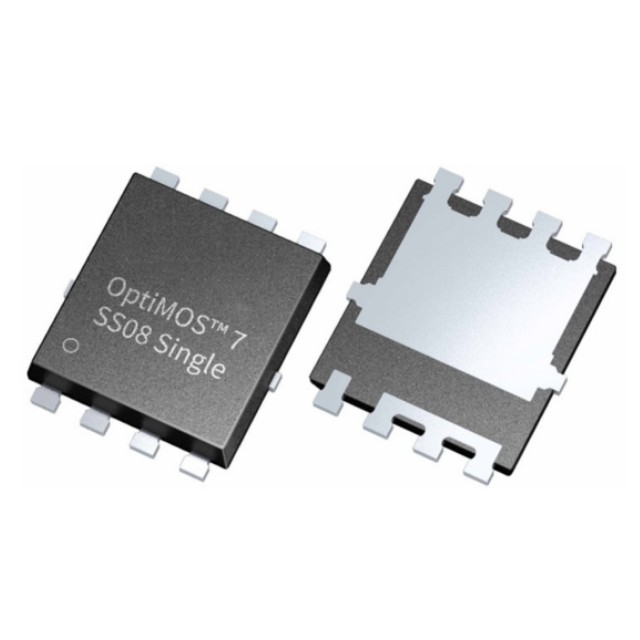

Infineon introduces its latest OptiMOS™ 7 40 V power MOS technology in the 5x6 mm2 SS08 leadless package with highest quality level and robustness for automotive applications.


Summary of Features

OptiMOS™ 7 power MOSFET for automotive applications

Very low Ron*A

High Avalanche capability

High SOA ruggedness

Fast switching times (turn on/off)

N-channel – Enhancement mode – Normal Level

Extended qualification beyond AEC-Q101

Enhanced electrical testing

Robust design

MSL1 up to 260°C peak reflow

175°C operating temperature

Low package resistance and inductance

Excellent thermal performance

Industry's lowest FOM (RDS (on) x Qg)


Benefits

High power efficiency

Increased design ruggedness for easy design

Optimized switching performance

Small footprint & efficient cooling

High quality product design for Automotive

High quality FE&BE production for Automotive


Potential Applications

Electric power steering

Braking systems

Power disconnect switches in zonal architectures

Battery management

E-fuse boxes

DC/DC

All Automotive BLDC drives in a wide variety and power class

Associated Products

Model

Brand

Package

Quantity

Describe

IAUC90N10S5N062

INFINEON

PG-TDSON-8

5000

100V, OptiMOS™-5 power MOSFET transistor, PG-TDSON-8

IAUC24N10S5L300

INFINEON

PG-TDSON-8

5000

100V, OptiMOS™-5 power MOSFET transistor, PG-TDSON-8

IAUC50N08S5N102

INFINEON

PG-TDSON-8

5000

80V, OptiMOS™-5 power MOSFET transistor, PG-TDSON-8

IAUC50N08S5L096

INFINEON

PG-TDSON-8

5000

80V, Automotive Power MOSFET Transistor, PG-TDSON-8

IAUC100N08S5N043

INFINEON

PG-TDSON-8

5000

80V, OptiMOS™-5 Automotive MOSFET Transistor, PG-TDSON-8

IAUC120N06S5N015

INFINEON

PG-TDSON-8

5000

60V, OptiMOS™-5 power MOSFET transistor, PG-TDSON-8

IAUC120N06S5L032

INFINEON

PG-TDSON-8

5000

60V, OptiMOS™-5 power MOSFET transistor, PG-TDSON-8

IPG20N06S2L-50A

INFINEON

PG-TDSON-8

8000

55 V, Dual N-Ch, 50 mΩ max, Automotive MOSFET, dual SSO8 (5x6), OptiMOS™

IPP77N06S2-12

INFINEON

PG-TO220-3

10000

55 V, N-Ch, 12 mΩ max, Automotive MOSFET, TO-220, OptiMOS™

IPG20N04S4L-18A

INFINEON

PG-TDSON-8

5000

40 V, Dual N-Ch, 18 mΩ max, Automotive MOSFET, SSO8 (5x6), OptiMOS™-T2
