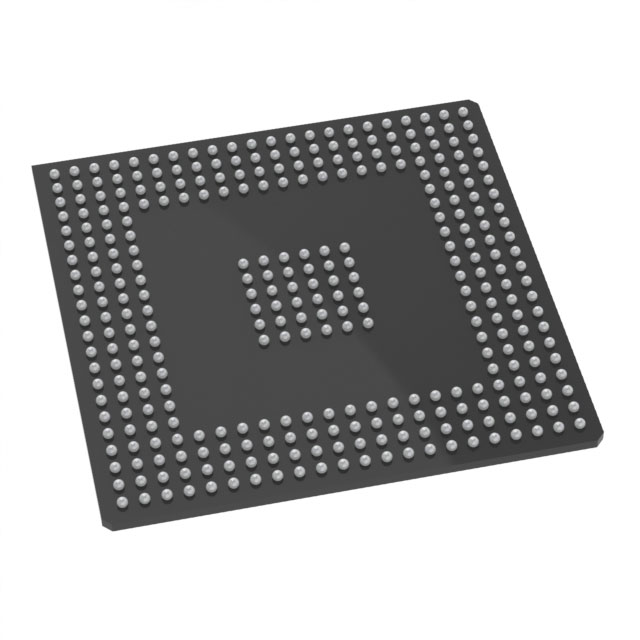

DLPC230STZDQQ1 - Automotive Digital Micromirror Device Controller

Product Description

DLPC230STZDQQ1 Digital Micromirror Display (DMD) controller for automotive applications is used in chipsets for interior and exterior display applications with a functional safety requirement (such as augmented reality HUDs and windshield clusters).

Product Features

Video processing

– Scales input image to match DMD resolution

– Bezel adjustment up ±50% vertical image position and ±10% horizontal reducing the need for mechanical alignment (HUD)

– Support for pixel doubling or quadrupling to allow low resolution video input

– Gamma correction

Embedded processor with error correction (ECC)

– On-chip diagnostic and self-test capability

– System diagnostics including temperature monitoring, device interface monitoring, and photodiode monitoring

– Integrated management of smooth dimming

– Configurable GPIO

No external RAM required, internal SRAM for image processing

600MHz sub-LVDS DMD interface for low power and emission

Spread spectrum clocking for reduced EMI

Video input interface

– Single OpenLDI (FPD-Link I) port up to 110 MHz

– 24-bit RGB parallel interface up to 110 MHz

Applications

Wide field of view and augmented reality head-up display (HUD)

Digital cluster, navigation, and infotainment windshield displays
