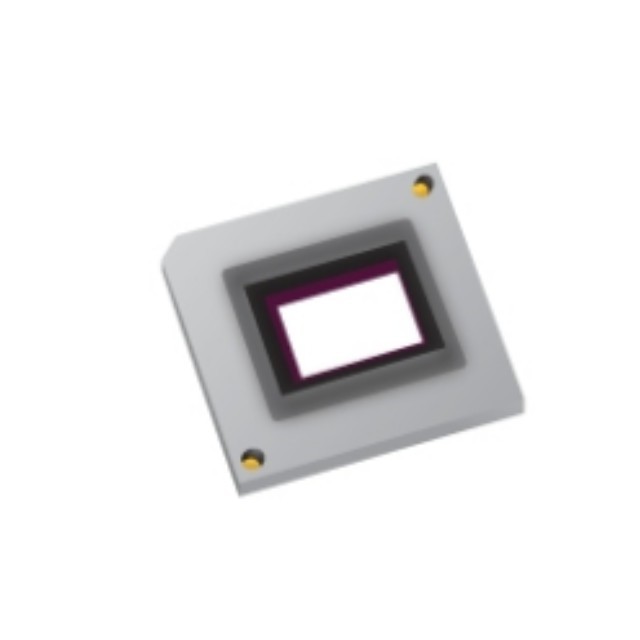

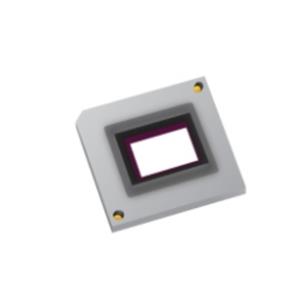

The DLP500YXFXK digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and/or phase of incident light. This DMD, in combination with four 2xLVDS input data buses, is capable of displaying high-resolution graphics at ultra-fast graphics update rates.The high resolution and fast graphics rates offered by the DLP500YX make it ideally suited to support a wide variety of industrial, medical, and advanced imaging applications.

Features

• High resolution 2048 × 1200 array

– >2.4M mirrors

– 0.50-inch micromirror array diagonal

– 5.4-micron micromirror pitch

– ±17.5° micromirror tilt angle (relative to flat surface)

– Designed for bottom illumination

– Integrated micromirror driver circuitry

• Designed for use with broadband visible light (420 nm – 700 nm)

– Window transmission 97% (single pass, through two window surfaces)

– Micromirror reflectivity 88%

– Array diffraction efficiency 84% (@f/2.4)

– Array fill factor 93%

• Four 16-bit, low-voltage differential signaling (LVDS), double data rate (DDR) input-data buses

• Driven by dual DLPC900 digital controllers

– Up to 16.1-kHz 1-bit patterns/second

– Equivalent of 39.6 gigabits/second pixel data rate in prestored pattern mode

– Up to 2016-Hz 8-bit gray pattern rate (prestored patterns with illumination modulation)

– Up to 1008-Hz 16-bit gray pattern rate (prestored patterns with illumination modulation)

– Up to 247-Hz 8-bit pattern rate (external video pattern input)

Applications

• Industrial

– 3D scanners for machine vision

– 3D touchless metrology and quality control

– 3D printing

• Medical

– Ophthalmology

– 3D scanners for limb and skin measurement

– Hyper-spectral scanning and imaging

• Displays

– 3D imaging microscopes

– Intelligent and adaptive lighting
