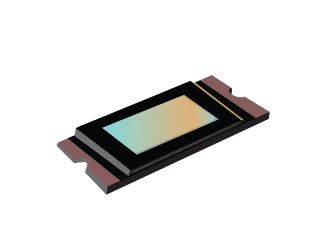

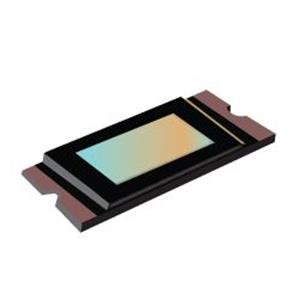

The DLP4500NIRAFQD digital micromirror device (DMD) can be used as a spatial light modulator (SLM) to manipulate near-infrared (NIR) light and generate patterns quickly, accurately and efficiently. Due to its high frequency division and compact form factor, the DLP4500NIRAFQD DMD is typically used in conjunction with a single element detector, replacing expensive InGaAs array-based detector designs to provide a high-performance, cost-effective, portable solution.

Features

• 0.45-Inch Diagonal Micromirror Array

– 912 × 1140 Resolution Array (>1 Million Micromirrors)

– Diamond Array Orientation Supports Side Illumination for Simplified, Efficient Optics Designs

– Capable of WXGA Resolution Display

– 7.6-µm Micromirror Pitch

– ±12° Tilt Angle

– 5-µs Micromirror Crossover Time (Nominal)

• Highly Efficient Steering of NIR Light

– Window Transmission Efficiency 96% Nominal (700 to 2000 nm, Single Pass Through Two Window Surfaces)

– Window Transmission Efficiency 90% Nominal (2000 to 2500 nm, Single Pass Through Two Window Surfaces)

– Polarization-Independent Aluminum Micromirrors

– Array Fill Factor 92% (Nominal)

• Dedicated DLPC350 Controller for Reliable Operation

– Binary Pattern Rates Up to 4 kHz

– Pattern Sequence Mode for Control Over Each Micromirror in Array

• Integrated Micromirror Driver Circuitry

• 9.1-mm × 20.7-mm for Portable Instruments

– FQD Package With Enhanced Thermal Interface

Applications

• Spectrometers (Chemical Analysis):

– Process Analyzers

– Laboratory Equipment

– Dedicated Analyzers

• Compressive Sensing (Single-Pixel NIR Cameras)

• 3-D Biometrics

• Machine Vision

• Infrared Scene Projection

• Laser Marking

• Optical Choppers

• Microscopes

• Optical Networking
