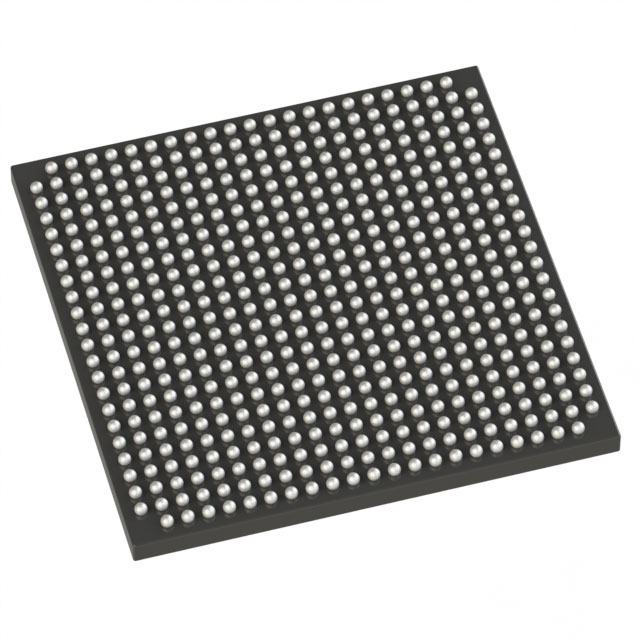

The S32G399ASCK1VUCT automotive network processors combine Controller Area Networks (CAN), Local Interconnect Networks (LIN), and FlexRay networks with high data rate Ethernet. These processors address the needs of vehicle architectures involving service-oriented gateways, vehicle computers, domain controllers, area processors, and security processors.The S32G3 processors feature up to eight Arm® Cortex®-A53 cores with Arm Neon™ technology in two groups of four cores. These vehicle network processors also feature up to four Arm Cortex-M7 Dual Core Lockstep (DCLS) complexes for real-time applications The S32G3 processors feature up to 20MB of system-on-chip SRAM, a low-latency communications engine (LLCE) for automotive network acceleration, and PFE for Ethernet network acceleration These vehicle network processors are built with advanced functional safety hardware and software for ASIL D systems.

The S32G3 automotive network processor is AEC-Q100 compliant and operates over the -40°C to +105°C temperature range.

Features

Extended S32G family capabilities with software and pin compatibility with the S32G2 processor

Up to eight Arm Cortex-A53 cores with Arm Neon technology, with two quad-core clusters to provide optional cluster lockstep for applications and services

Up to four Arm Cortex-M7 Dual Core Lockstep (DCLS) complexes for real-time applications

Up to 20MB of system-on-chip static random access memory

Low-latency communications engine (LLCE) for in-vehicle network acceleration

Packet Forwarding Engine (PFE) for Ethernet acceleration with three ports supporting 2.5Gbps

Hardware Security Engine (HSE) for secure boot and acceleration of security services

16 isolation domains with Extended Resource Domain Control (XRDC)

Advanced functional safety hardware software for ASIL D systems

AEC-Q100 Level 2 device

Operating temperature range: -40°C to +105°C

Applications

Combining ASIL D security, hardware security, high-performance real-time and application processing, and network acceleration, the chip's target applications include:

- Service-oriented gateways and domain controllers

- Safety processors for ADAS and autonomous driving

- High-performance centralised computing nodes

- FOTA masters that control the download and distribution of secure software images to ECUs in the network

- Security services and key management

- Smart antennas
