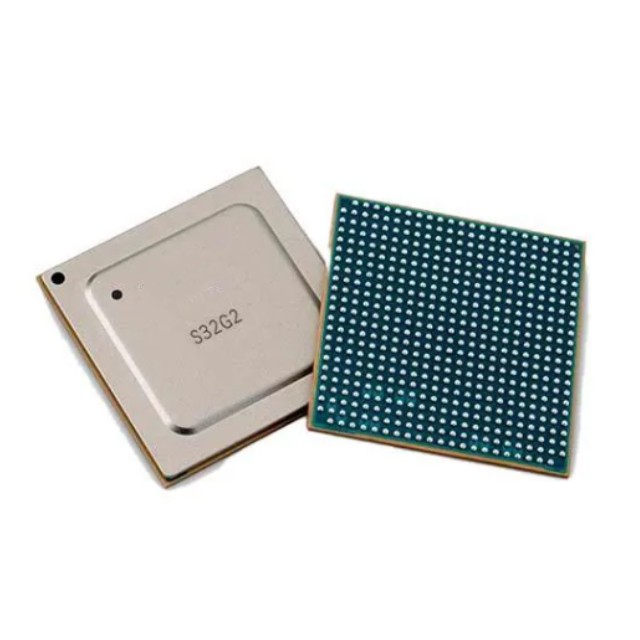

The S32G234MSBK0VUCT automotive network processor combines ASIL D-rated security, high-performance real-time and application processing, and network acceleration.The S32G2 supports the needs of new automotive architectures: service-based gateways, domain controllers, zone processors, security processors, and more.

Features

Quad-core Arm® Cortex®-A53 application processor

Optional cluster lockstep support

Triple dual-core lockstep Cortex-M7 real-time microcontrollers

Hardware accelerators

Packet Forwarding Engine over Ethernet (PFE) for Ethernet network acceleration

Low Latency Communication Engine (LLCE) for automotive network acceleration

Hardware Security Engine (HSE) for secure boot and acceleration of security services

Support for 4GB DDR3L/LPDDR4 DDR and NOR/NAND Flash Memory

Automotive CAN/CAN FD, LIN, FlexRay interfaces

4 Gigabit Ethernet network interfaces

PCI Express Gen 3.0 (2 x 2 lanes)

ASIL D functional safety (certified to ISO 26262:2018 process)

JTAG debug and Aurora trace support

525-ball FC-PBGA package, 19mm x 19mm, 0.8mm ball pitch

AEC-Q100 Class 2 device

Supported Software

S32G Vehicle Integration Platform (GoldVIP) Software

S32 Design Studio IDE - Eclipse, GCC and Debugger, 3rd party support

Real-time drivers - free (AUTOSAR and non-), ASIL-D compliant

Secure Firmware - NXP supplied, field upgradable

S32 Secure Software Framework (SAF) and Structural Kernel Self-Test (SCST) libraries

Secure peripheral drivers

Model Based Design Toolbox (MBDT) (for MATLAB®)

Inter-Platform Communication Framework (IPCF)

Applications

Automotive

Domain Controllers

Automotive Networks

Security Processors

Technologies

Gateways

Service Oriented Gateway
