The MCIMX6G1AVM05AB is a family of high-performance, ultra-efficient processors featuring NXP's advanced ARM Cortex®-A7 core running at speeds up to 696 MHz. i.MX 6UltraLite includes an integrated power management module that reduces external power supply complexity and simplifies power sequencing. Each processor in the family offers a variety of memory interfaces, including LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI, and a variety of other interfaces for connecting peripherals such as WLAN, Bluetooth™, GPS, displays and camera sensors.

Features

CPU Composite Device

Arm Cortex-A7, running at 696 MHz, 128 KB L2 cache

Display

Parallel LCD display with resolutions up to WXGA (1366x768)

8/10/16/24-bit parallel camera sensor interface

Memory

16-bit LP-DDR2, DDR3/DDR3L

8/16-bit parallel NOR FLASH / PSRAM

Dual Channel Quad-SPI NOR FLASH

8-bit Raw NAND FLASH with 40-bit ECC

Data Connectivity

2 MMC 4.5/SD 3.0/SDIO ports

2 USB 2.0 OTG, HS/FS, device or host with PHY interface

Audio interfaces including 3x I2S/SAI, S/PDIF Tx/Rx

2 x 10/100 Ethernet with IEEE 1588 protocol support

2 x 12-bit ADCs, up to 10 input channels, and resistive touch controller (4-wire/5-wire)

Advanced power management

Partial PMU integration

Security

Security modules: TRNG, encryption engine (AES with DPA, TDES/ SHA/ RSA), anti-tamper monitoring, secure boot, SIMV2/ EVMSIM X 2, OTF DRAM

Encryption, PCI 4.0 pre-certification

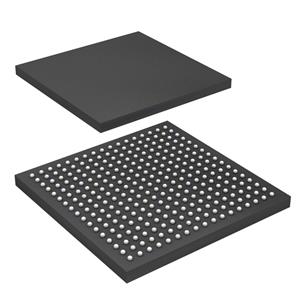

Package: 14x14 289MAPBGA 0.8mm pitch

The i.MX 6UltraLite is particularly well suited for automotive applications such as:

- Telematics

- Human Machine Interface (HMI)
