MCIMX6G2DVK05AB The i.MX6UltraLite, an extension of the i.MX6 family, is a series of high-performance, ultra-efficient processors featuring the advanced Arm® Cortex®-A7 core running at speeds up to 696 MHz. i.MX6UltraLite application processors include an integrated power management module that reduces external power complexity and simplifies power-up timing. The i.MX6UltraLite application processors include an integrated power management module that reduces external power complexity and simplifies power-up timing. Each processor in this family offers a variety of memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND Flash, NOR Flash, eMMC, Quad SPI, and a variety of other interfaces for connecting to peripheral devices such as WLAN, Bluetooth™, GPS, displays, and camera sensors.

Features

CPU Composite Device

Arm Cortex-A7 running at 696 MHz, 128 KB L2 cache

Display

Parallel LCD display with resolutions up to WXGA (1366x768)

8/10/16/24-bit parallel camera sensor interface

Memory

16-bit LP-DDR2, DDR3/DDR3L

8/16-bit parallel NOR FLASH / PSRAM

Dual Channel Quad-SPI NOR FLASH

8-bit Raw NAND FLASH with 40-bit ECC

Data Connectivity

2 MMC 4.5/SD 3.0/SDIO ports

2 USB 2.0 OTG, HS/FS, device or host with PHY interface

Audio interfaces including 3x I2S/SAI, S/PDIF Tx/Rx

2 x 10/100 Ethernet with IEEE 1588 protocol support

2 x 12-bit ADCs, up to 10 input channels, and resistive touch controller (4-wire/5-wire)

Advanced power management

Partial PMU integration

Security

Security modules: TRNG, encryption engine (AES with DPA, TDES/ SHA/ RSA), anti-tamper monitoring, secure boot, SIMV2/ EVMSIM X 2, OTF DRAM

Encryption, PCI4.0 pre-certified

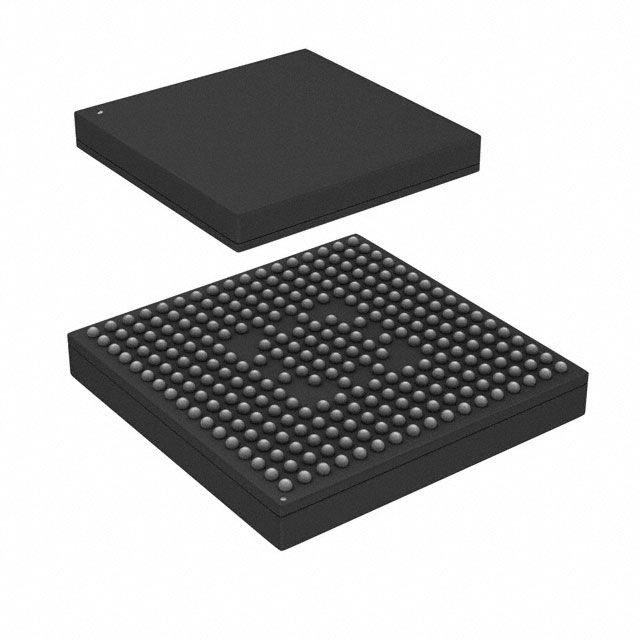

Package: 9x9 272 MAPBGA 0.5mm pitch

The i.MX 6UltraLite is especially suited for the following applications:

- Electronic point-of-sale devices

- Telematics

- IoT gateways

- Access control panels

- Human Machine Interface (HMI)

- Intelligent Appliances
