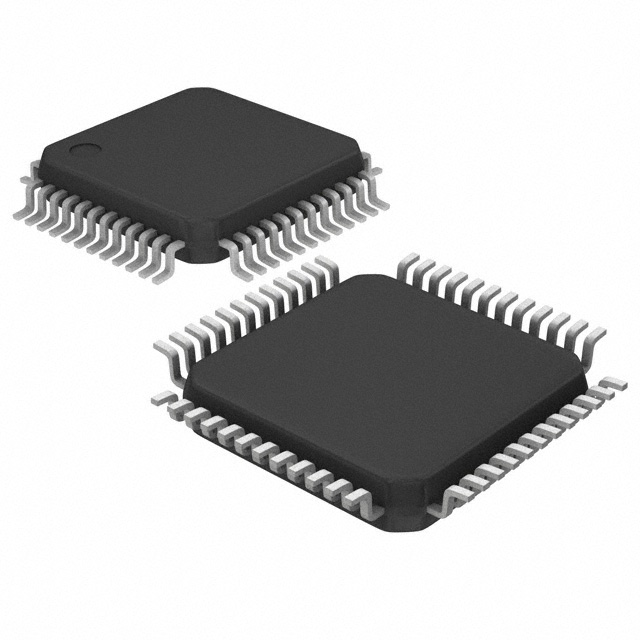

LPC11E67JBD48K is an ARM Cortex-M0+ based, low-cost 32-bit MCU family operating atCPU frequencies of up to 50 MHz. LPC11E67JBD48K support up to 256 KB of flash memory,a 4 KB EEPROM, and 36 KB of SRAM.

Feature

ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).

AHB Multilayer matrix.

System tick timer.

Serial Wire Debug (SWD) and JTAG boundary scan modes supported.

Micro Trace Buffer (MTB) supported.

Up to 256 KB on-chip flash programming memory with page erase.

Up to 32 KB main SRAM.

Up to two additional SRAM blocks of 2 KB each.

Up to 4 KB EEPROM.

Boot loader.

USART drivers.

I2C drivers.

DMA drivers.

Power profiles.

Flash In-Application Programming (IAP) and In-System Programming (ISP).

32-bit integer division routines.

Unique device serial number for identification. Single power supply (2.4 V to 3.6 V).

Separate VBAT supply for RTC.

Operating temperature range -40 °C to 105 °C.

Applications

Three-phase e-meter

Car radio GPS tracker

Medical monitor

Gaming accessories

PC peripherals
