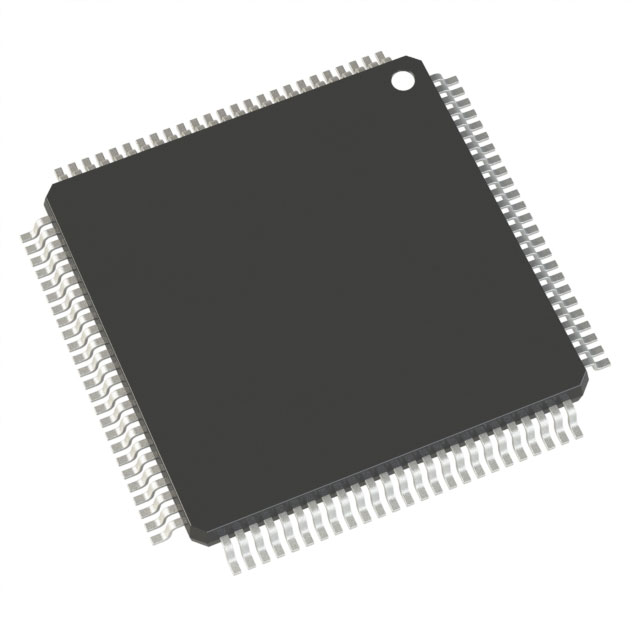

The PIC32MX470F512L-120/PT MCUs offer the perfect combination of 32-bit performance, memory and integrated peripherals at a low cost. Running at up to 120 MHz/150 DMIPS, these devices feature a rich set of integrated peripherals, including two SPI/I2S interfaces for audio codecs, an 8-bit PMP for graphics or external memory, and an onboard 10-bit 1 Msps ADC.

Product Attributes

Core Processor: MIPS32® M4K™

Core specification: 32-bit single core

Speed: 120MHz

Connectivity: I²C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG

Peripherals: Undervoltage Detect/Reset, DMA, POR, PWM, WDT

Number of I/O: 81

Program memory capacity: 512KB (512K x 8)

Program memory type: Flash

RAM Size: 128K x 8

Voltage - Supply (Vcc/Vdd): 2.3V ~ 3.6V

Data Converter: A/D 28x10b

Oscillator Type: Internal

Operating Temperature: 0°C ~ 70°C (TA)

Mounting Type: Surface Mount

Package/Case: 100-TQFP

Supplier Device Package: 100-TQFP (12x12)
