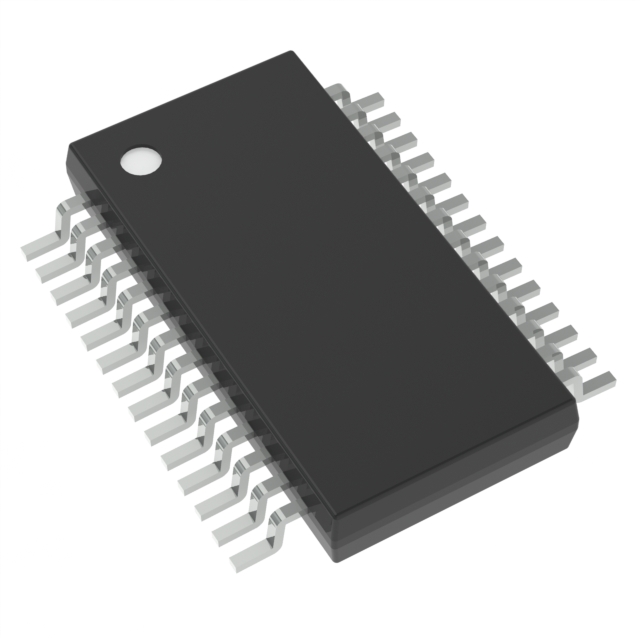

The PIC16F18154-I/SS full-featured microcontrollers (MCUs) are ideally suited for low-cost, energy-efficient analogue sensor applications with high resolution requirements.The PIC16F18154T-I/SS MCUs feature a full suite of analogue peripherals to support precision sensor applications. The devices feature a 7KB to 28KB memory range, speeds up to 32MHz, and a small 28-pin package. The MCUs include a 12-bit differential analogue-to-digital converter (ADCC) with computation, two 8-bit digital-to-analogue converters (DACs), a 16-bit pulse width modulation (PWM) peripheral, and additional waveform control and communication peripherals.

Product Features

Enhanced midrange core with 49 instructions and a 16-level stack

Flash programme memory with self-read/write capability

Ultra-low power consumption (XLP)

IDLE and DOZE low-power modes

Peripheral Module Disable (PMD)

Peripheral Pin Select (PPS)

12-bit Differential Analogue to Digital Converter (ADCC) with Calculation

1x Operational Amplifier

2x Capture/Compare/PWM (CCP)

2x 16-Bit PWM with Dual Outputs

1x 8-bit Internal Digital-to-Analogue Converter (DAC)

1x 8-bit external/buffered digital-to-analogue converter (DAC)

x2 Analogue Comparators (AC)

x4 Configurable Logic Cells (CLC)

Flash CRC

1x NCO

1x CWG

Zero Cross Detection (ZCD)

2x EUSART (LIN support)

2x MSSP (I2C or SPI)

1x 8/16-bit Timer (TMR0)

1x 16-bit Timer (TMR1)

1x 8-bit Timer (TMR2)

Enhanced power-on/power-off reset

Programmable power-off reset (BOR) with fast recovery function
