ATA8215-GHQW is a highly integrated, low-power UHF ASK/FSK RF receiver with an integrated AVR microcontroller.

Feature

Digital RSSI with very high relative accuracy of ±1dB thanks to digitized IF processing

Programmable clock output derived from crystal frequency

1024byte EEPROM data memory for receiver configuration

SPI interface for Rx data access and receiver configuration

500Kbit SPI data rate for short periods on SPI bus and host controller

On demand services (SPI or API) without polling or telegram reception

Integrated temperature sensor

Self check and calibration with temperature measurement

Configurable EVENT signal indicates the status of the IC to an external microcontroller

Automatic low-power channel polling

Flexible polling configuration concerning timing, order and participating channels

Fast reaction time

Power-up (typical 1.5ms, OFFMode -> RXMode)

Supports mixed ASK/FSK telegrams

Non-byte aligned data reception

Software customization

Antenna diversity with external switch via GPIO control

Antenna diversity with internal SPDT switch

Supply voltage range 1.9V to 3.6V

Temperature range –40°C to +85°C

ESD protection at all pins (±4kV HBM, ±200V MM, ±750V FCDM)

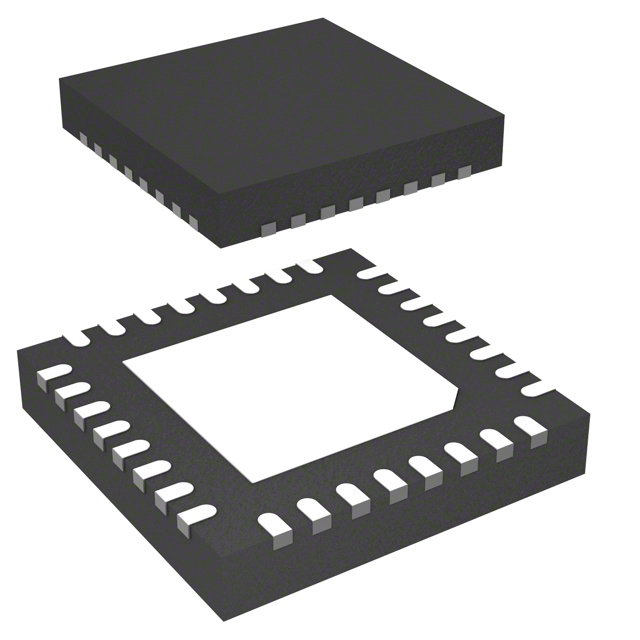

Small 55mm QFN32 package/pitch 0.5mm

Suitable for applications governed by EN 300 220 and FCC part 15, title 47

Applications

Remote control systems, e.g., garage door openers

Smart RF applications

Telemetering systems

Wireless alarm and security systems

Home and building automation

Weather stations
