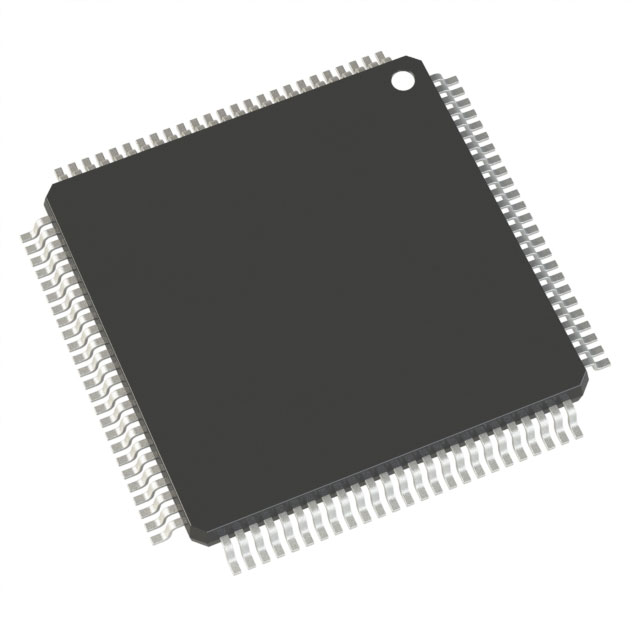

PIC32MK0512MCF100-I/PT is 32-bit General Purpose and Motor Control Application Microcontroller with FPU and up to 1 MB Live-Update Flash, 256 KB SRAM, 4 KB EEPROM, and Op amps.

Product Features

Core: 120 MHz (up to 198 DMIPS)

MIPS32® microAptiv™ MCU core with Floating Point Unit

microMIPS™ mode for up to 40% smaller code size

DSP-enhanced core:

- Four 64-bit accumulators

- Single-cycle MAC, saturating and fractional math

Code-efficient (C and Assembly) architecture

Two 32-bit core register files to reduce interrupt latency

External Graphics interfaces through PMP

Up to six I2S audio data communication interfaces

Up to six SPI audio control interfaces

Programmable audio master clock:

- Generation of fractional clock freque

Advanced Analog Features

- 7 individual ADC modules

- 3.75 Msps per S&H with dedicated DMA

- Up to 42 analog inputs

Flexible and independent ADC trigger sources

Four Op amps and five Comparators

Up to three 12-bit CDACs

Internal temperature sensor ±2ºC accuracy

Capacitive Touch Divider (CVD)

Communication Interfaces

Up to four CAN modules (with dedicated DMA channels):

- 2.0B Active with DeviceNet™ addressing support

Up to six UART modules (up to 25 Mbps):

- Supports LIN 1.2 and IrDA® protocols

Six SPI/I2S modules (SPI 50 Mbps)

Parallel Master Port (PMP)

Up to two FS USB 2.0-compliant On-The-Go (OTG) controllers

Peripheral Pin Select (PPS) to enable remappable pin functions
