Trade Name:IQE008N03LM5
Data Manual:
IQE008N03LM5.pdf
Brand:INFINEON
Particular Year:23+
Package:8-PowerTDFN
Delivery Date:New original
Stock: 2000pcs

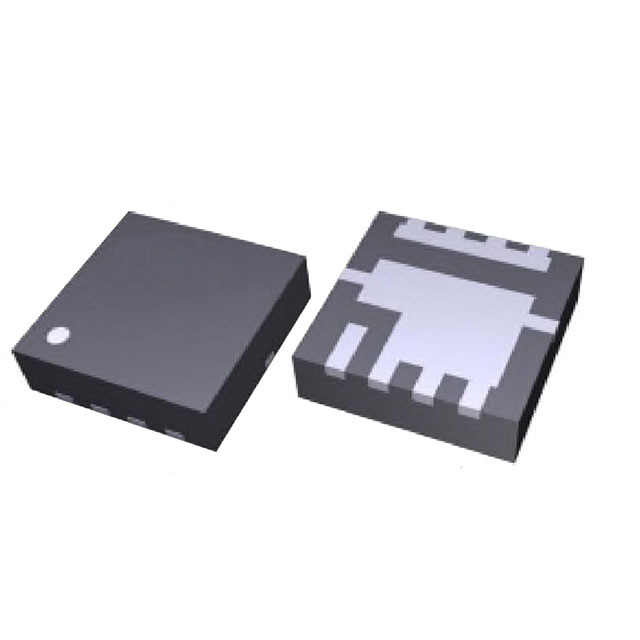

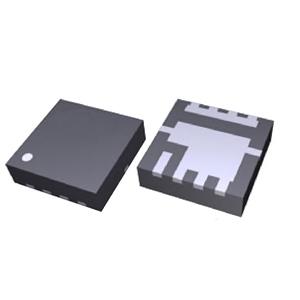

IQE008N03LM5 is OptiMOS™ N-Channel Power-Transistor 8-PowerTDFN Surface Mount.
Product Attributes
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:27A (Ta), 253A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:0.85mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:64 nC @ 10 V
Vgs (Max):±16V
Input Capacitance (Ciss) (Max) @ Vds:5700 pF @ 15 V
Power Dissipation (Max):2.1W (Ta), 89W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Feature
Optimized for high performance SMPS, e.g. sync.rec.
Very low on-resistance Ros(on) @ Vcs=4.5 V
100% avalanche tested
Superior thermal resistance
N-channel
Pb-free lead plating; RoHS compliant
Halogen-free according to IEC61249-2-21
