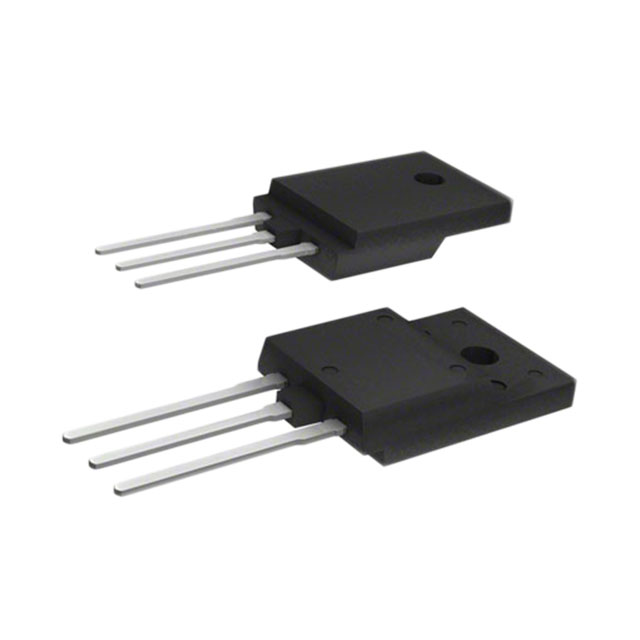

The IPAN60R360PFD7S is a revolutionary technology from Infineon Technologies that pioneers the design of high voltage power MOSFETs using the Super Junction (SJ) principle. The latest CoolMOS™PFD7 is an optimised platform for cost-sensitive applications in the consumer goods market, such as chargers, adapters, engine drives, lighting, etc., automotive drives, lighting, etc. The newest CoolMOS™PFD7 is an optimised platform for cost-sensitive applications in the consumer goods market. All the benefits of the device's superjunction MOSFETs, along with an excellent price/performance ratio and the technology's compliance with the highest energy efficiency standards, support high power densities and enable customers to realise ultra-thin designs.

Product Characteristics

Transistor Type: N-Channel Transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 650 В

Current at 25°C - Continuous Drain (Id): 10 A (Tc)

Supply Voltage (Max Rds On, Min Rds On): 10 Ω: 10 В

Switching Resistance at Different Id, Vgs (Max): 360 mOhm at 2.9 A, 10 V

Vgs(th) at different Id (max): 4.5 V (140 µA)

Gate charge (Qg) at maximum Vgs: 12.7 nK at 10 V

Vgs (max): ±20 V

Input capacitance (Ciss) at different Vds (max) 534 pF @ 400 V

Power Dissipation (Max): 23 W (Tc): 23 W (Tc).

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting type: Through-hole

Delivery incl.: PG-TO220-FP

Package/case: TO-220-3 complete package

Applications

● ZVStopologies for use in high density chargers

● ZVStopologies used in applications such as adapters, lighting and motor drives
