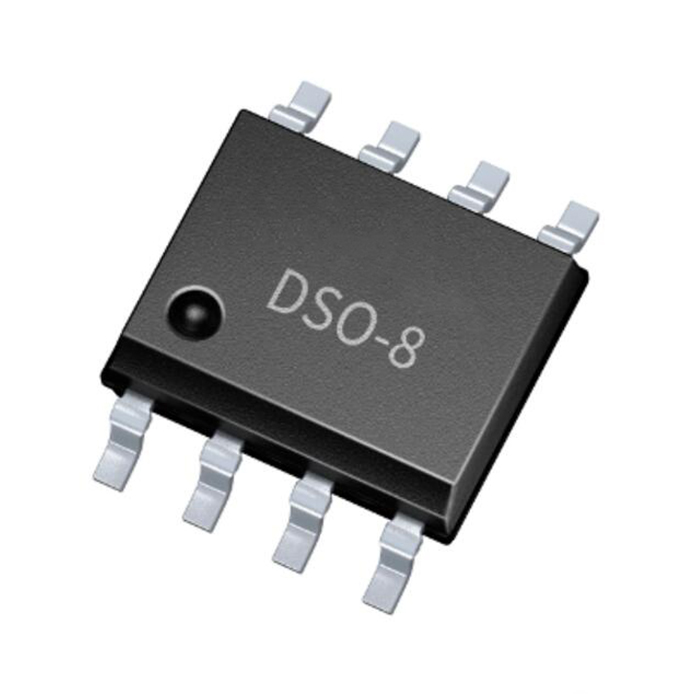

2ED2109S06F is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Summary of Features

Operating voltages (VS node) upto + 650 V

Negative VS transient immunity of 100 V

Integrated ultra-fast, low resistance bootstrap diode, lower the BOM cost

Floating channel designed for bootstrap operation

Independent under voltage lockout (UVLO) for both channels

IN, /SD logic input, shutdown input turns off both channels

Internal 540 ns dead time

740 / 200 ns propagation delay

Maximum supply voltage of 25 V

Logic operational up to –11 V on VS Pin

Negative voltage tolerance on inputs of –5 V

The floating channel can be used to drive an N-channel MOSFET, SiC MOSFET or IGBT in the high side configuration

Applications

Home appliances

Motor control and drives

Power tools

Switched mode power supplies (SMPS)
