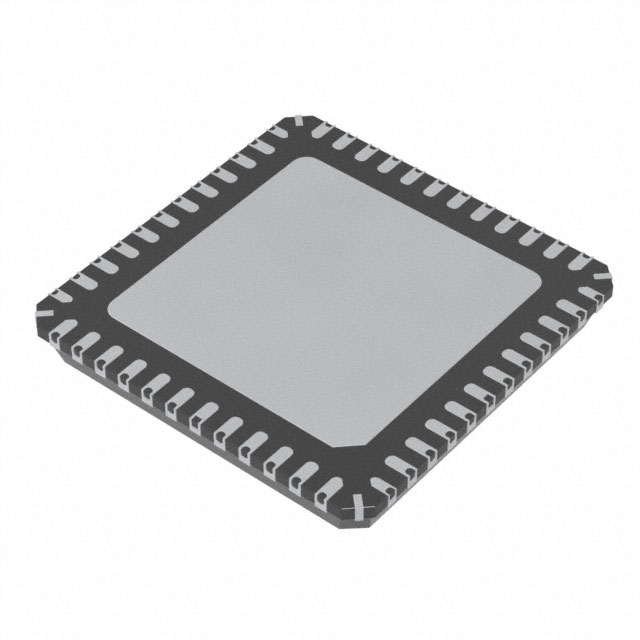

TLE9271QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48 leadless package with Lead Tip Inspection feature supporting Automatic Optical Inspection.

Features

Very low quiescent current consumption in SBC Stop and Sleep mode

SMPS 750 mA (DC/DC buck) voltage regulator 3.3 V to supply high current load with high efficiency

DC/DC boost converter for low battery supply voltage

Low-drop voltage regulator 5 V/100 mA, protected for off-board usage

High-speed CAN FD transceiver compliant to ISO11898-2:2016 supporting communication up to 5 Mbps

Up to 2 LIN transceivers LIN2.2, SAE J2602 with programmable TXD timeout feature and LIN Flash mode

Compliant with “Hardware requirements for LIN, CAN and FlexRay interfaces in automotive applications”Revision 1.3, 2012-05-04

One universal high-voltage wake input for voltage level monitoring

Configurable wake-up sources including periodic cyclic wake in SBC Normal and Stop mode

Configurable timeout and window watchdog and reset output

Fail-safe input to monitor MCU hardware functionality

Up to three fail-safe outputs (depending on configurations) to activate external loads in case of systemmalfunctions are detected

Overtemperature and short circuit protection feature

Software compatible with latest Infineon SBC families

PG-VQFN-48 leadless exposed-pad power package with Lead Tip Inspection (LTI)

Green Product (RoHS compliant)

Applications

Body control modules

Gateway

HVAC ECU and control panel
