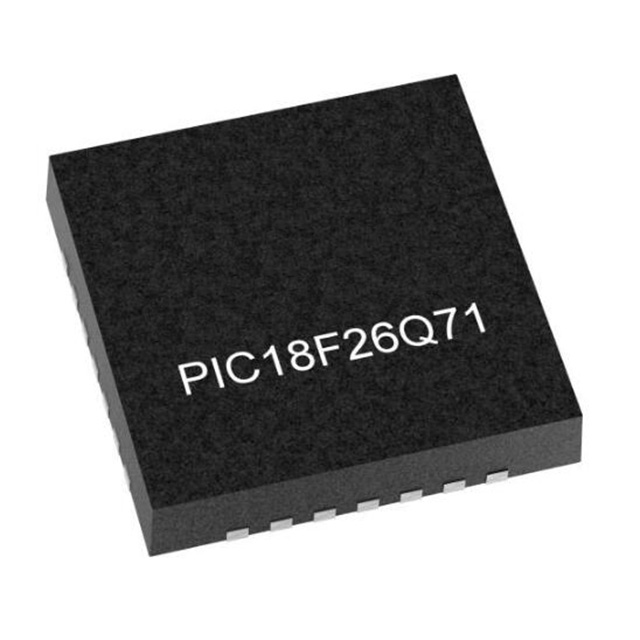

PIC18F26Q71-I/STX is Low-Power, High-Performance Microcontroller with XLP Technology. This is an ideal solution for lighting, motor control and medical market segments. It features a 12-bit Differential ADC with Computation and Context Switching, two Operational Amplifiers, a 10-bit Digital-to-Analog Converter (DAC) and two 8-bit DAC modules with buffered outputs and internal connections to other peripherals, and two advanced high-speed Analog Comparators.

Product Features

Operating Speed:

– DC – 64 MHz clock input

– 62.5 ns minimum instruction cycle

128-Level Deep Hardware Stack

Low-Current Power-on Reset (POR)

Configurable Power-up Timer (PWRT)

Brown-out Reset (BOR)

Low-Power BOR (LPBOR) Option

Operating Voltage Range: 1.8V to 5.5V

Temperature Range:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C

Up to 64 KB of Program Flash Memory

Up to 4 KB of Data SRAM Memory

256 Bytes Data EEPROM

Low Power Mode Features:

– Sleep: < 1 µA typical @ 3V

– Operating Current: 48 µA @ 32 kHz, 3V, typical

High-Precision Internal Oscillator Block (HFINTOSC):

– Selectable frequencies up to 64 MHz

– ±1% at calibration

– Active Clock Tuning of HFINTOSC for better accuracy

32 kHz Low-Power Internal Oscillator (LFINTOSC)

External 32 kHz Crystal Oscillator (SOSC)
