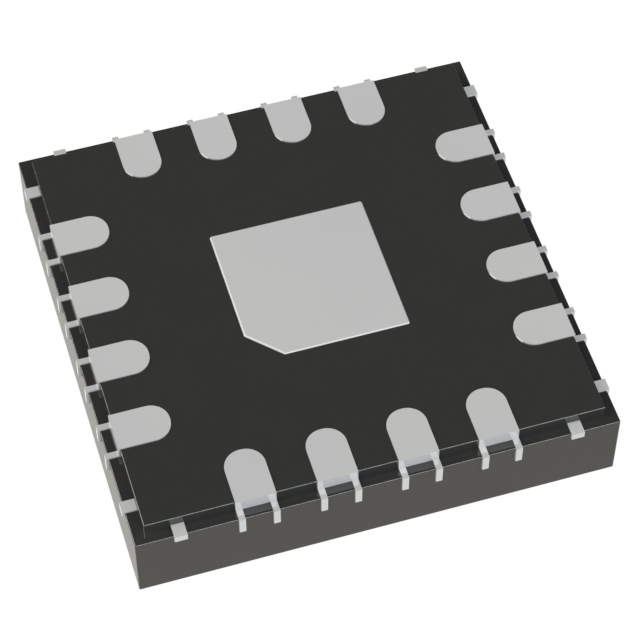

SY75604ATWL PCIe Clock Buffers is fanout buffers with an ultra-low additive jitter of 10fs for PCIe 5.0, 20fs for PCIe 3.0/4.0, and 52fs in the 12kHz to 20MHz band.The Clock Buffers can be used in all PCIe 1/2/3/4/5 common clock and SRIS applications. The devices have embedded low-dropout regulators for superior power noise supply rejection.

Features

Ultra-Low Additive Jitter 10 fs (PCIe Gen5)

Supports Frequencies of up to 250 MHz

Transparent for Spread Spectrum

Supports 1.8V ±10%, 2.5V ±10%, and 3.3V ±10% Power Supplies

Individual Glitch Free Output Enable (OExb)Control Pins

Accepts DC-Coupled HCSL Input Signal and AC-Coupled PECL, LVDS, and CML

Extended Temperature Range: –40°C to +105°C

Application

PCIe Graphics Cards

PCIe Based SSD drives

Laptops and Desktop Computers

Servers
