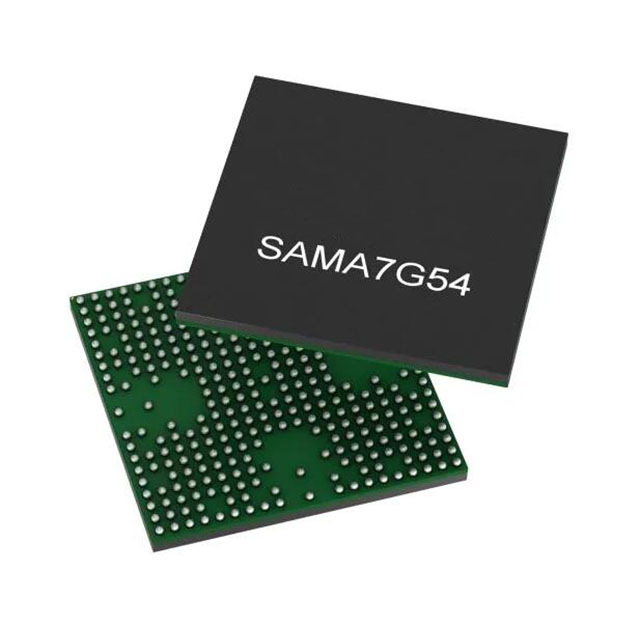

SAMA7G54-V/4HB is a high-performance, ultra-low power Arm Cortex-A7 CPU-based embedded microprocessor (MPU) running up to 1 GHz, with support for multiple memories such as 16-bit DDR2, DDR3, DDR3L, LPDDR2, LPDDR3, octal/quad SPI and e.MMC Flash.

Product Features

Arm Cortex-A7 Core

Arm TrustZone®

NEON multimedia architecture

Floating Point Unit

Embedded Trace module with instruction trace stream, including 16Kbytes of CoreSight™ Embedded Trace buffer

32 Kbytes of L1 data cache, 32 Kbytes of L1 instruction cache

256 Kbytes of L2 cache

Up to 1 GHz operational frequency

Voltage and frequency scaling support

64-bit generic timers

Internal Memory Architecture

128 Kbytes of internal SRAM and 5 Kbytes of secure backup RAM

80 Kbytes of maskable ROM, embedding a secure boot loader (boot on QSPI NOR, SLC NAND, SD, e.MMC)

96 Kbytes ROM for NAND Flash ECC tables

40 Kbytes ROM for crypto-libraries (RSA, ECC, etc.)

11 Kbytes of internal OTP

Twelve FLEXCOMs (USART, SPI and TWIHS)

Six 64-bit timers

Two three-channel 32-bit timer counters, with PWM generation

One four-channel 16-bit PWM controller

One 16-channel 12-bit analog-to-digital converter, up to 1 Msps
